60 mm Plain Bearing Block - Double, Cheek

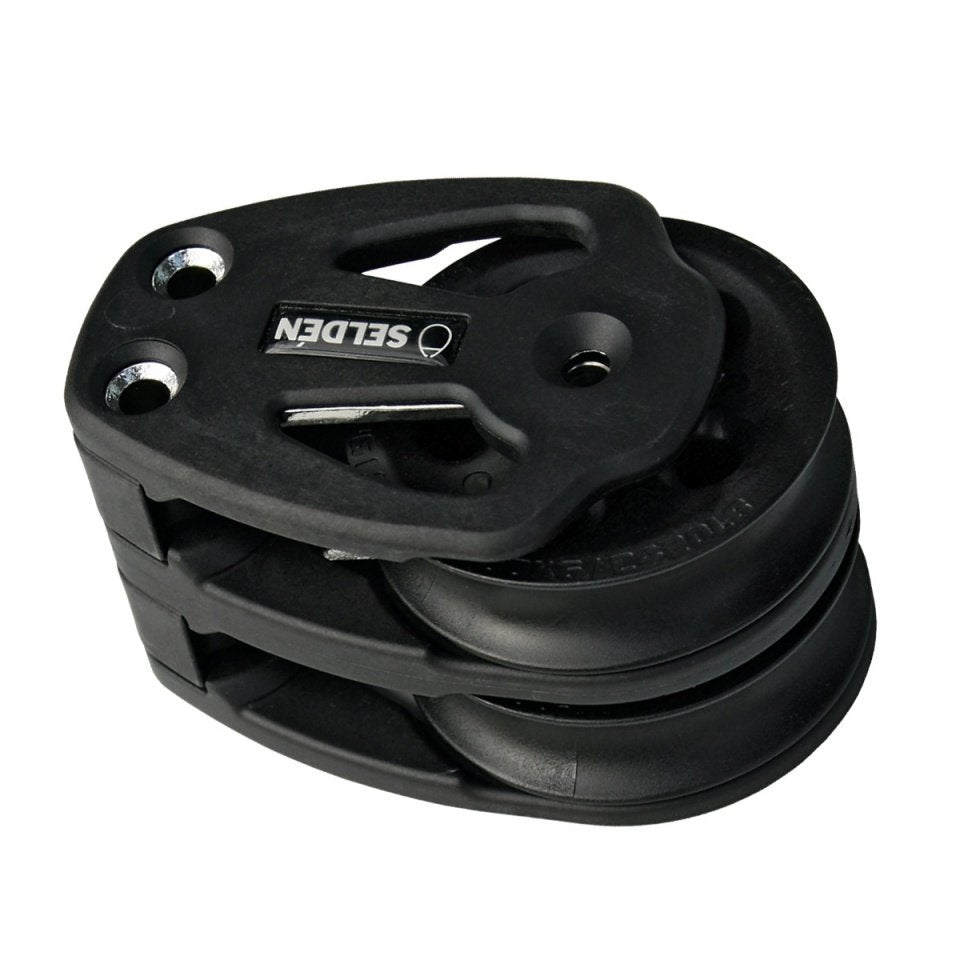

The PBB60 Double Cheek Block is a deck-mounted block suitable for line routing over deck on medium sized boats. It features glass fiber reinforced polyamide sides, stainless steel straps and a simple deck installation with 3 M6 screws. With a 60 mm sheave diameter, it can handle heavy loads up to 1000 kg on the lower sheave and 500 kg on the upper sheave.

BlockType: cheek,double,quicklock
SubType: cheek double
Breaking Load: 2000 kg
Safe working Load: 1000 kg
System: PBB60
Max line size: 14 mm
Upper breaking load: 10.00 kN
Upper safe working load: 5.00 kN
Mounting: 3xM6
