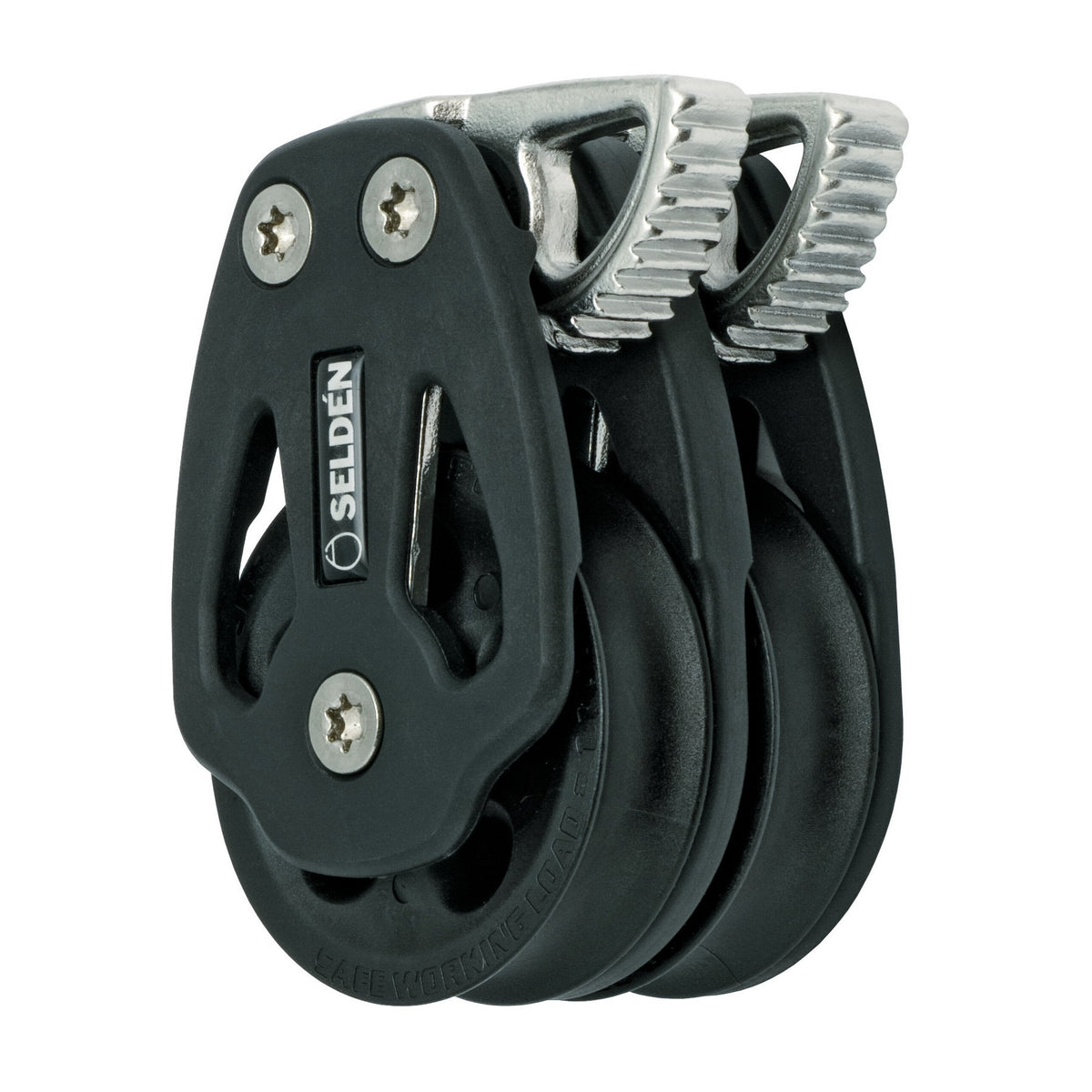

60 mm Plain Bearing Block - Double, Cheek, Quick-Lock, Clockwise

The 60 mm Double Cheek Plain Bearing Block with Quick-Lock is designed to lead lines to winches and allow for them to be temporarily locked with spring-loaded locking arms. This way, the winch can be used for other purposes. Another typical application is to secure inactive spinnaker sheets / guys to prevent them to become unreeved.

The locking arms are spring-loaded to prevent accidential locking.

406-001-22R rotates clockwise when tensioning the line.

BlockType: cheek,double,quicklock
SubType: cheek double quicklock
Breaking Load: 2000 kg
Safe working Load: 1000 kg
Max line size: 14 mm
Upper breaking load: 10.00 kN
Upper safe working load: 5.00 kN
Mounting: 3xM6
