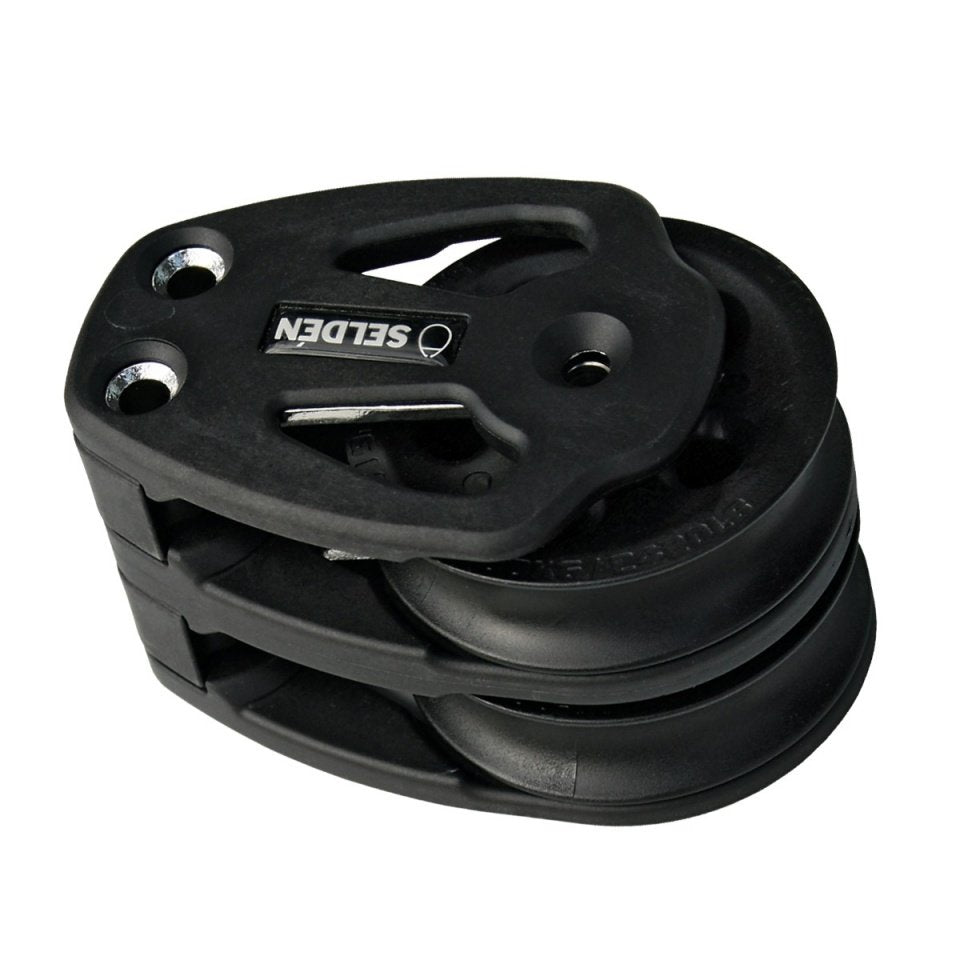

80 mm Plain Bearing Block - Cheek, Double, Flat base

The PBB80 Double Cheek Block is a deck-mounted block suitable for line routing over deck on medium sized boats. It features glass fibre reinforced sheave with polymer bushings, glass fiber reinforced polyamide sides, stainless steel straps and a simple deck installation with 3 M8 screws. With a 80 mm sheave diameter, it can handle heavy loads up to 2000 kg on the lower sheave and 1000 kg on the upper sheave.

BlockType: cheek,double,quicklock
SubType: cheek double
Breaking Load: 4000 kg
Safe working Load: 2000 kg
System: PBB80
Max line size: 16 mm
Upper breaking load: 20.00 kN
Upper safe working load: 10.00 kN
Mounting: 3xM8
