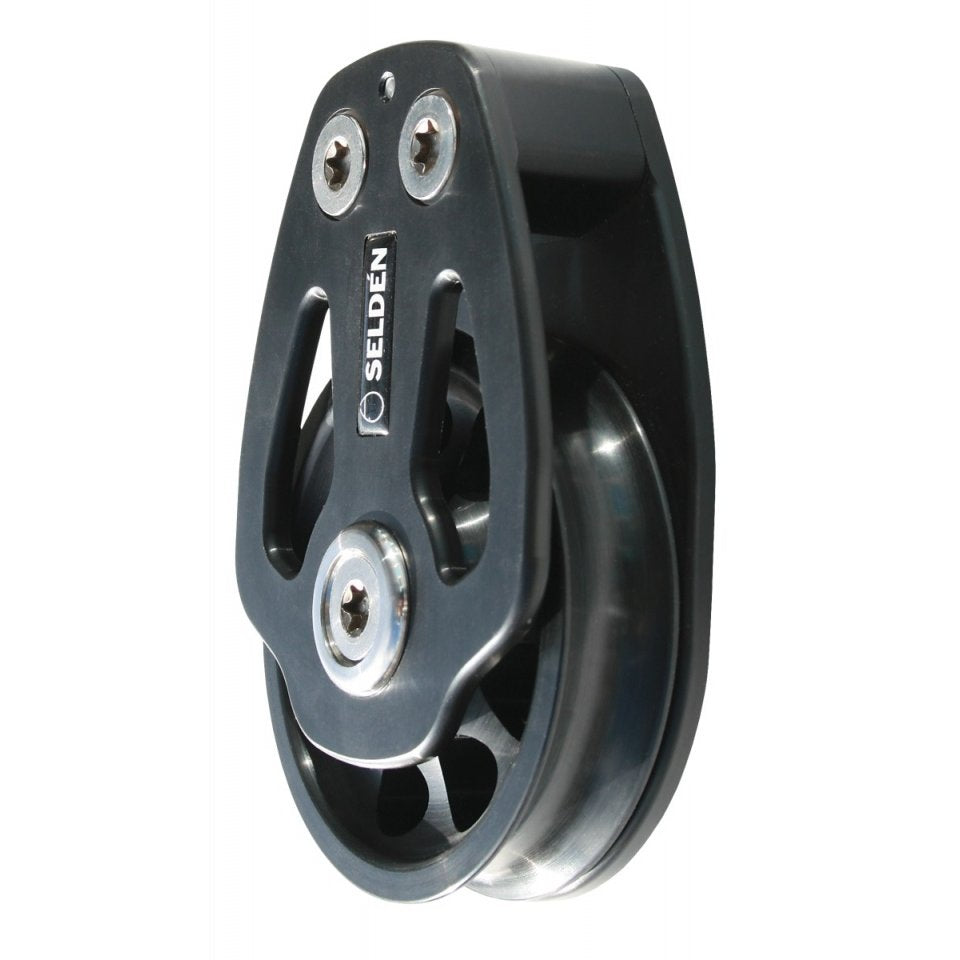

100 mm Plain Bearing Block - Cheek, Flat base

The 100mm Plain Bearing Cheek Block is designed for up to 4 ton working load.

The block features a plain bearing with polymer bushing and two axial Delrin®
thrust bearings to stabilize the sheave when the rope enters or exits the block with
an angle. Machined, black anodised aluminium sheave and cheeks. All stainless parts are insulated from aluminium to prevent corrosion.

This is the ideal block for guiding a sheet to a winch. Easy to maintain and install on deck with 3 x M10 screws.

BlockType: cheek,single
SubType: cheek single
Breaking Load: 8000 kg
Safe working Load: 4000 kg
System: PBB100
Max line size: 20 mm
Mounting: 3xM10
