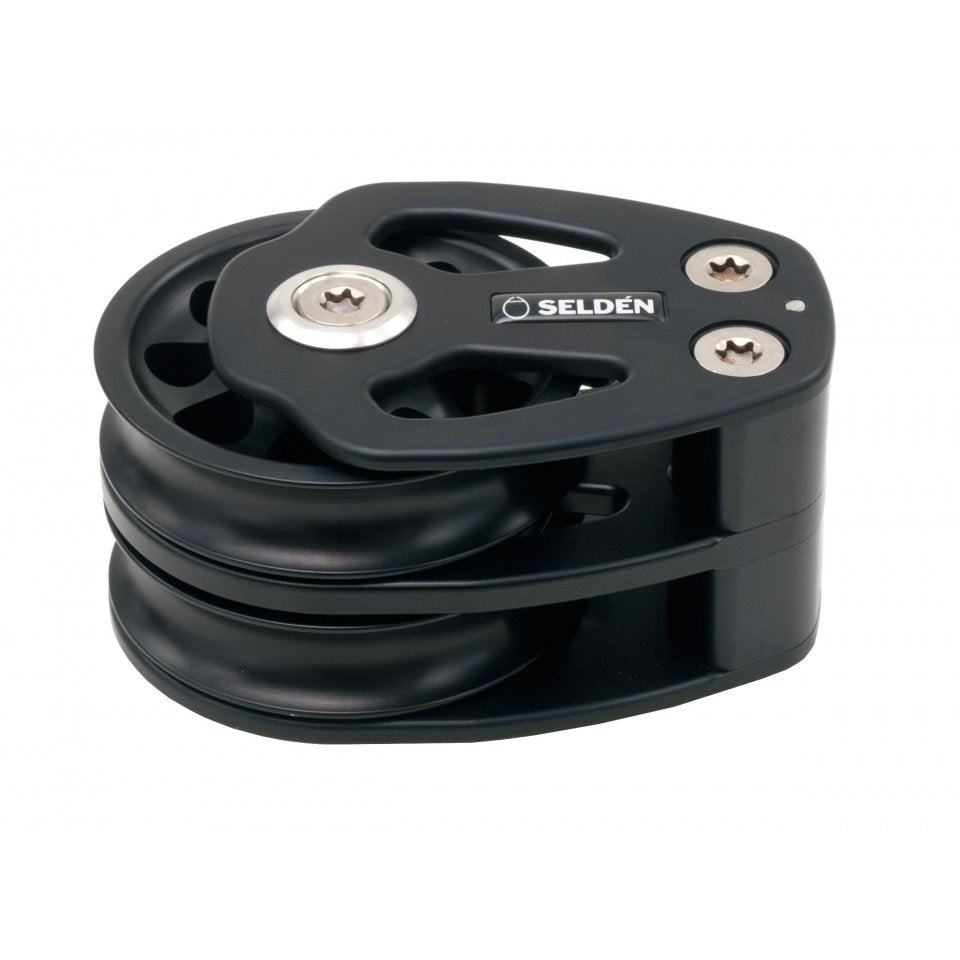

100 mm Plain Bearing Block - Cheek, Double, Flat base

The 100mm Plain Bearing Double Cheek Block is designed for up to 4 ton working load on the lower sheave and 2 ton on the upper.

The block features plain bearings with polymer bushings and four axial Delrin®
thrust bearings to stabilize the sheave when the rope enters or exits the block with
an angle. Machined, black anodised aluminium sheave and cheeks. All stainless parts are insulated from aluminium to prevent corrosion.

This is the ideal block for guiding sheets to a winch. Easy to maintain and install on deck with 3 x M10 screws.

BlockType: cheek,double
SubType: cheek double
Safe working Load: 4000 kg
System: PBB100
Max line size: 20 mm
Mounting: 3xM10
