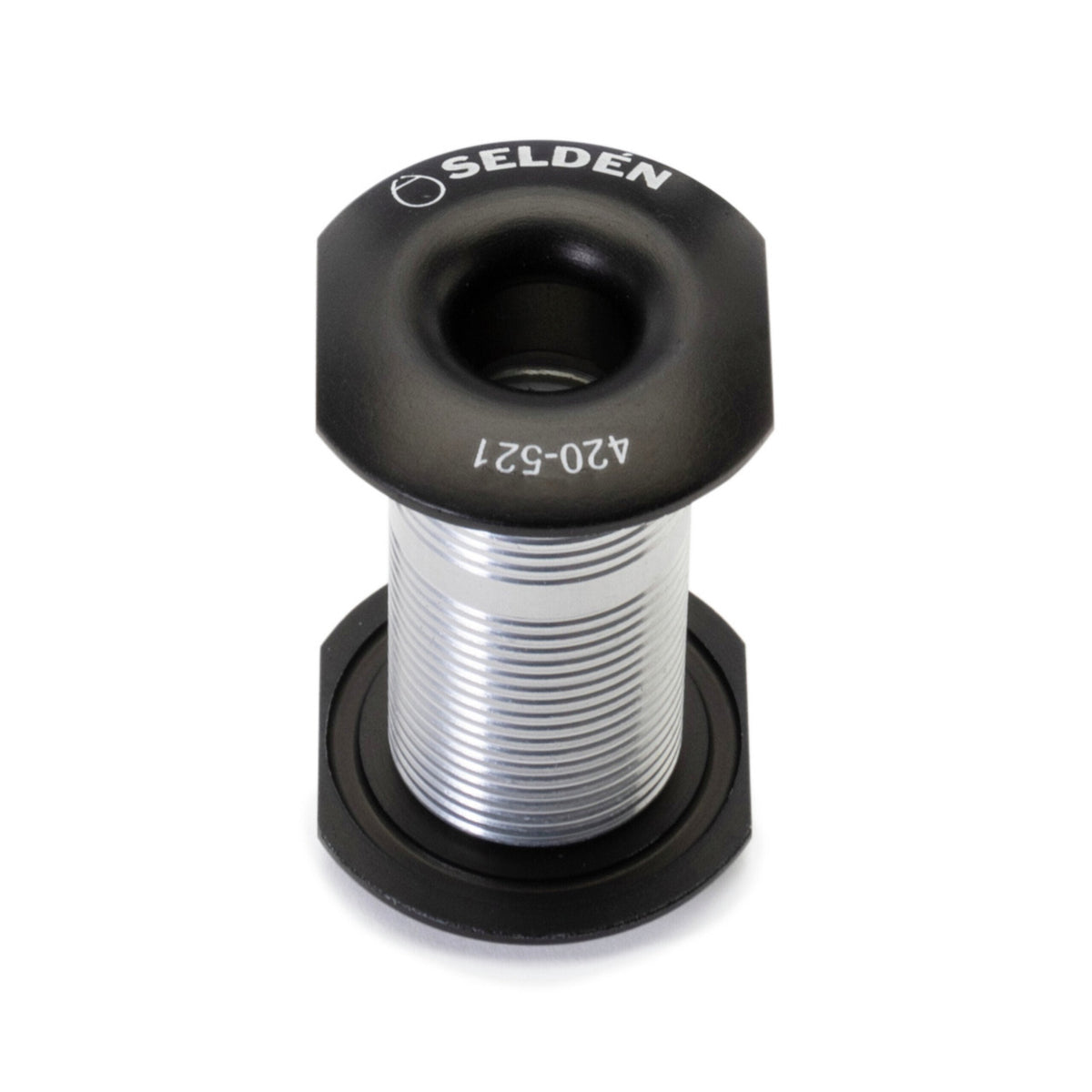

THROUGH DECK LEAD,2-SIDED,MAX LINE ø5

Double Through-Deck Lead for max ø5 mm line size.

Lower- and upper lead fittings in aluminium connected with an aluminium distance tube that can be cut to desired length. The outer side of the distance tube has a pattern that helps the installer to orientate the saw blad for an exact cut.

The fittings are hard anodized machined aluminium with wrench flats for a tight installation.

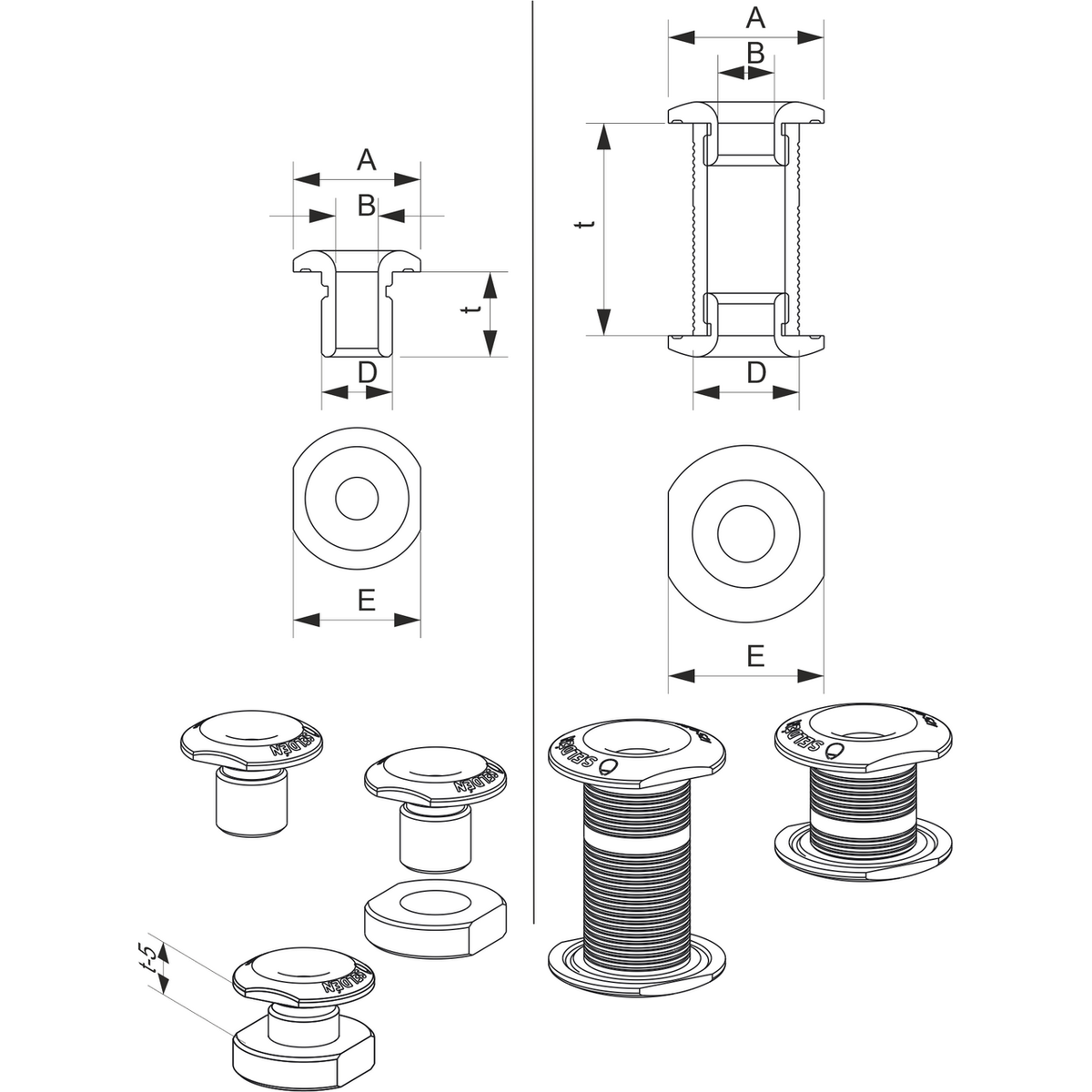

SubType: 2-Sided
A: 20 mm
B: 6 mm
D: 12 mm
E: 18 mm
t: 30 mm
tmin: 12 mm
Max line size: 5 mm
