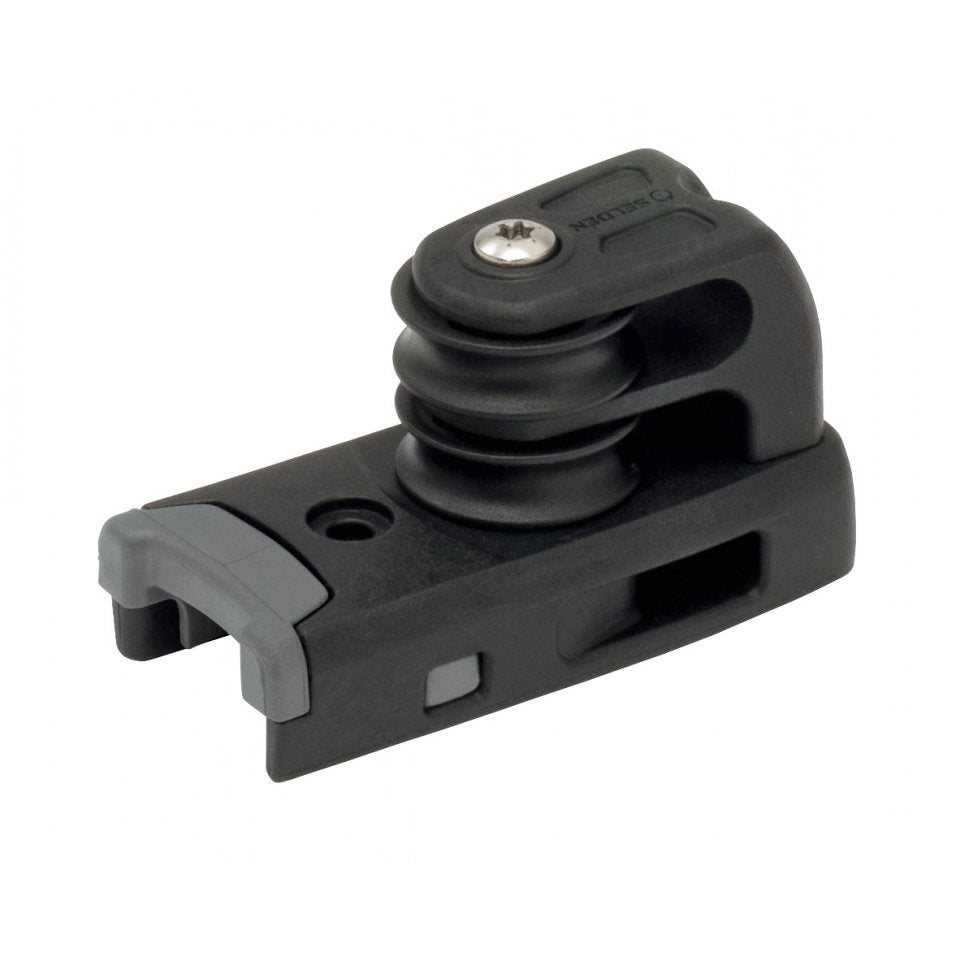

System 22 - End Control, Double Plain Bearing Sheaves, Becket for Control Line

The Genoa End Control is part of the System 22 deck hardware range. It features ø30 mm plain bearing sheaves for 4:1 or 6:1 purchase of the control lines. The hole in the base is a termination (becket) for a control line. The fitting is glass fiber reinforced composite with polymer sheaves and a rubber buffer bearing.

Ideal dimension of the control line is ø7 mm. See Seldén's line packages.

Control lines, article numbers and descriptions

400-500-09 CONTROL LINE, BLACK L=9000

400-500-12 CONTROL LINE, BLACK L=12000

400-500-15 CONTROL LINE, BLACK L=15000

400-500-18 CONTROL LINE, BLACK L=18000

System: 22
SWL: 300 kg
Breaking load: 600 kg
Purchase: 6 N:1
Max control line Ø: 7 mm
Length: 87 mm
Width: 39 mm
Fasteners: 1x MRT M5
