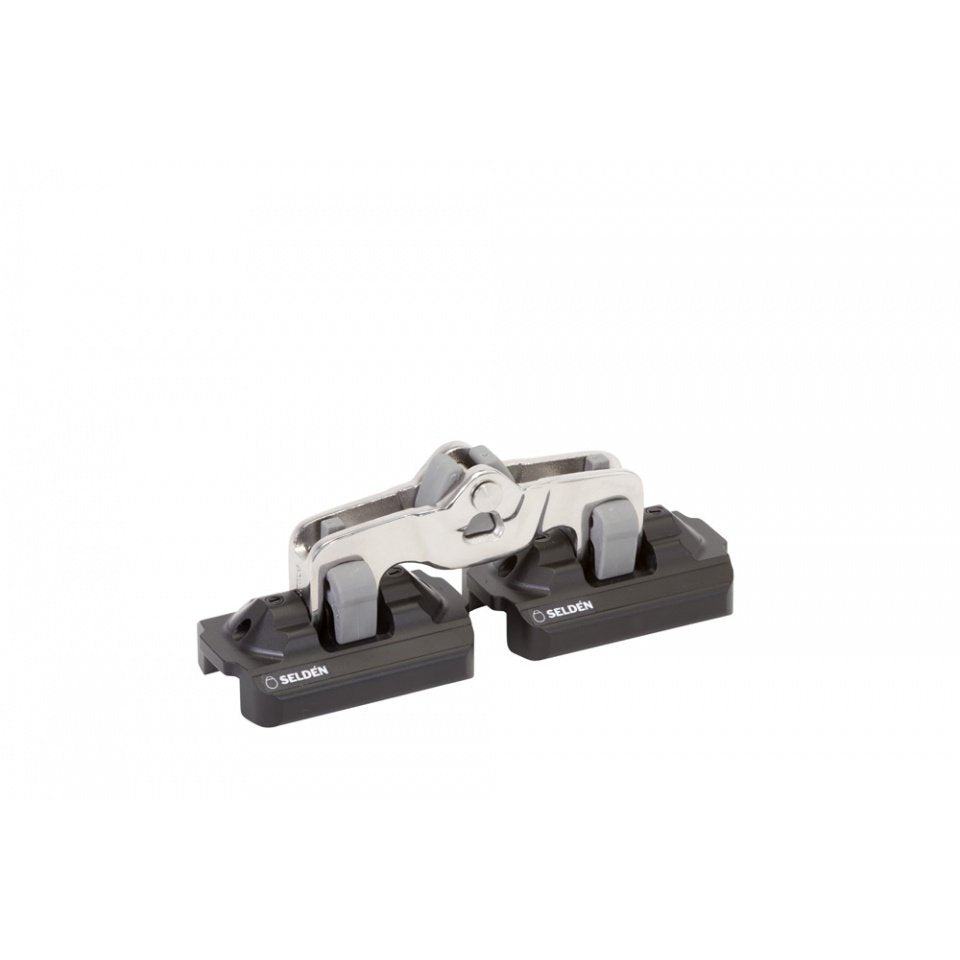

System 22 - Double Ball Bearing Self-Tacking Car, Stainless Toggle Link with Stand-Ups

The System 22 Self-Tacking Double Car is designed for Seldén 22 mm self-tacking system. It features Torlon ball bearings and stainless toggle for smooth operation. The toggle accepts PBB50, BBB60 and R60 blocks.

Recommended for boats with a righting moment > 35 kNm at 30° heeling angle which corresponds to approximately 6 ton displacement.

System: 22
SubType: toggle
Safe working Load: 900 kg
Breaking Load: 1800 kg
Length: 178
Width: 57
Min Rv: 2000
Min Rh: 2000
