System 30 - Sliding Bolt Track, 2000 mm, Screw size M6, Recommended Spacing c-c Max 100 mm

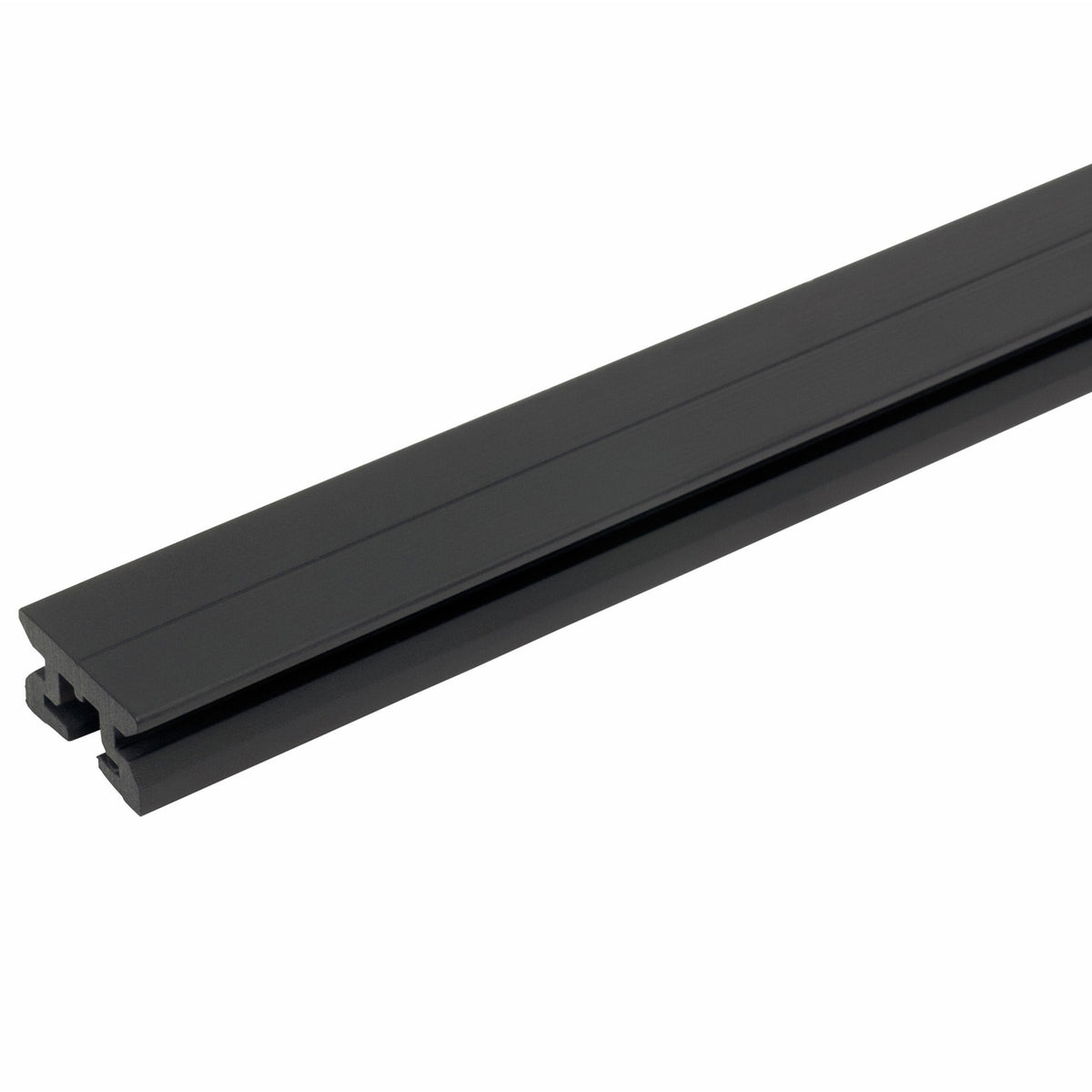

30 mm x 2000 mm long "Sliding Bolt" track. A solid track with no holes for installation, but a groove where hexagon bolts and sealing washers slides in (not included).

The bolts (DIN standard) are inserted in the groove with sealing washers (164-482) fitted. Sealing compound is applied between the flanges of the washers. The track is then turned and mounted on deck.

This way a retrofit upgrade to new tracks can be made without drilling new holes in deck as the fasteners are located according to the existing bolt holes.

System: 30
Profile: Slidingbolt
Length: 2000 mm

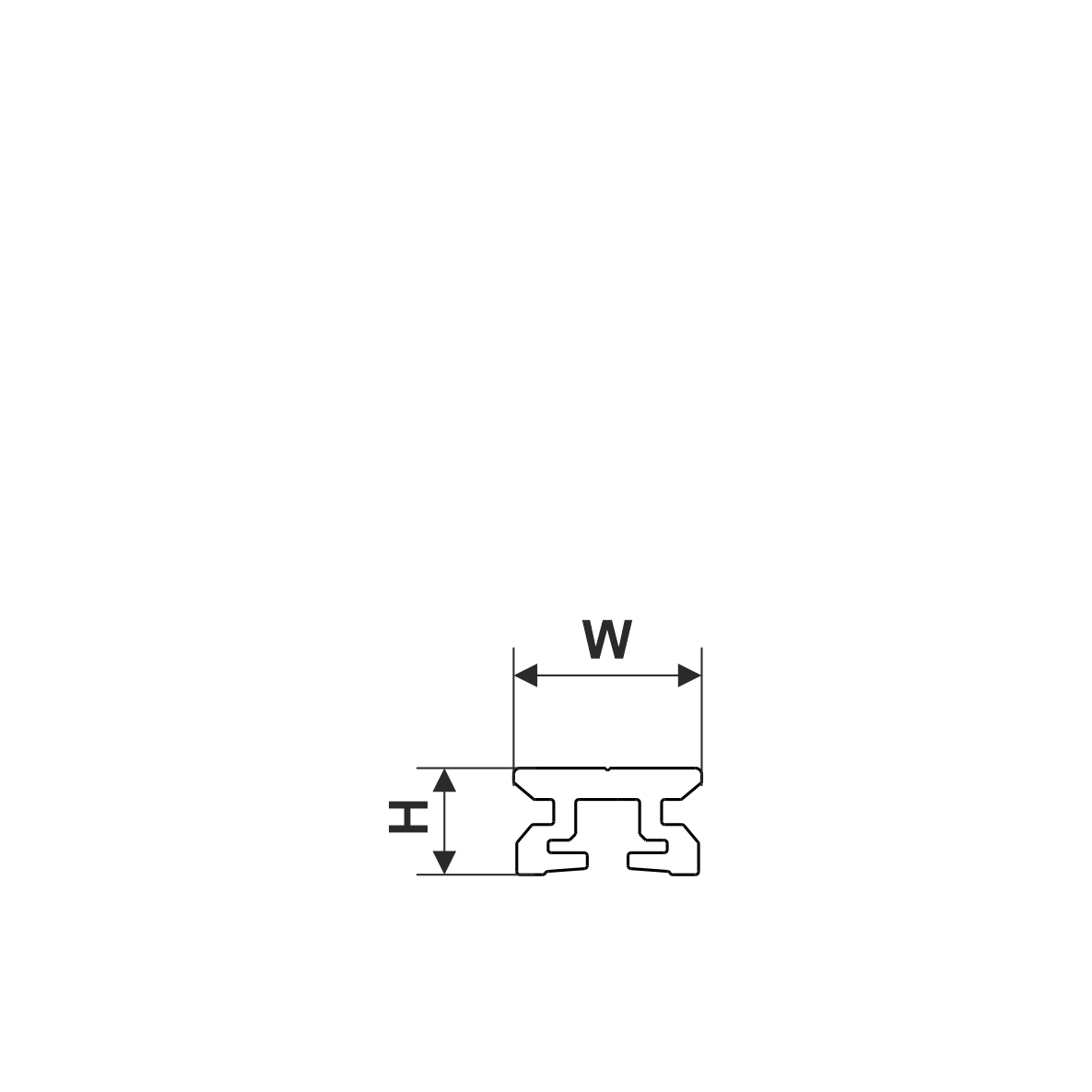

W: 30 mm
H: 17 mm
Fasteners: Sealing washer 164-482 + M6 bolt
Comment: Max bolt spacing c-c (mm) = 100
