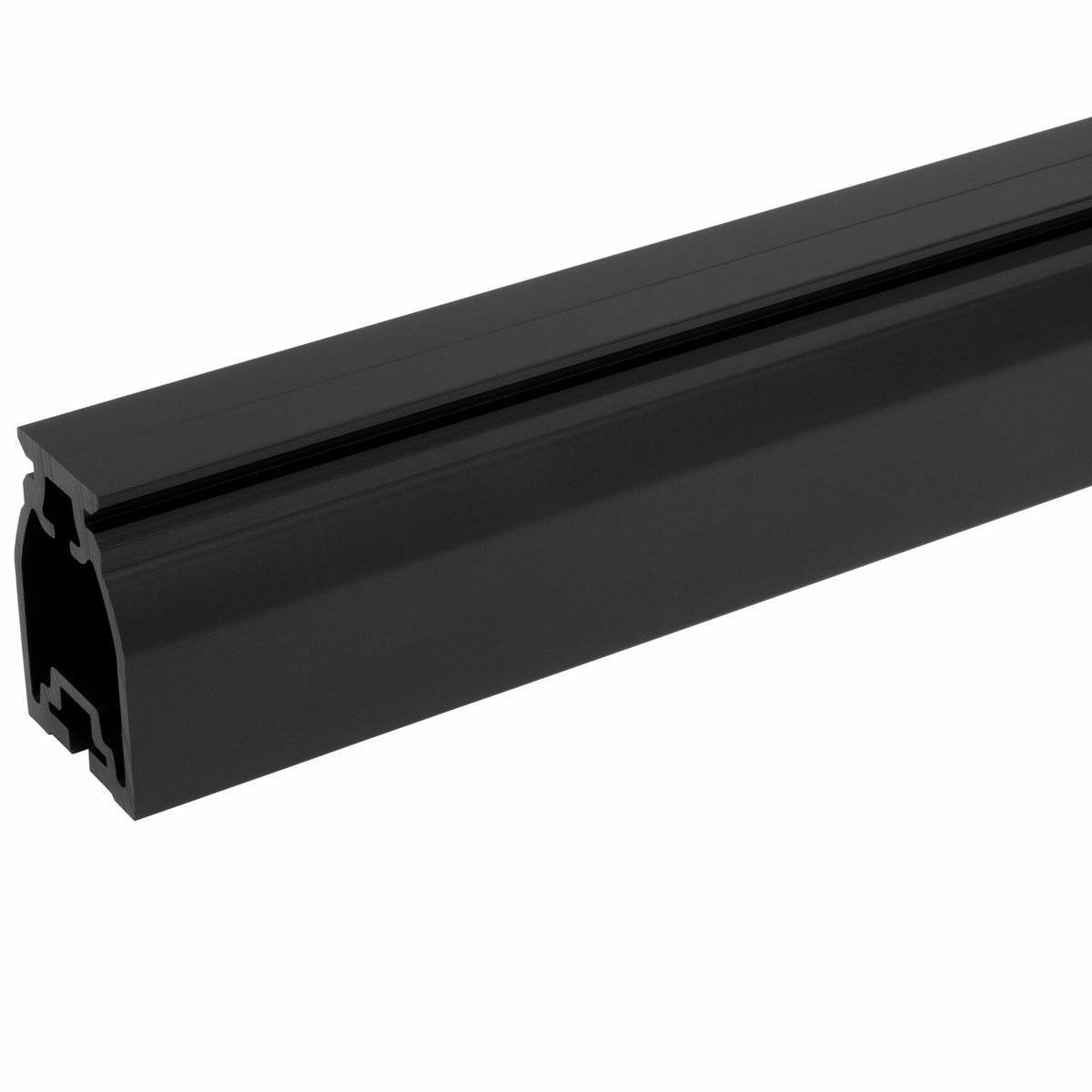

System 30 - High-Beam Track, 2000 mm

The System 30 High-Beam Track, 2000 mm, is designed for mainsheet applications on medium sized yachts.

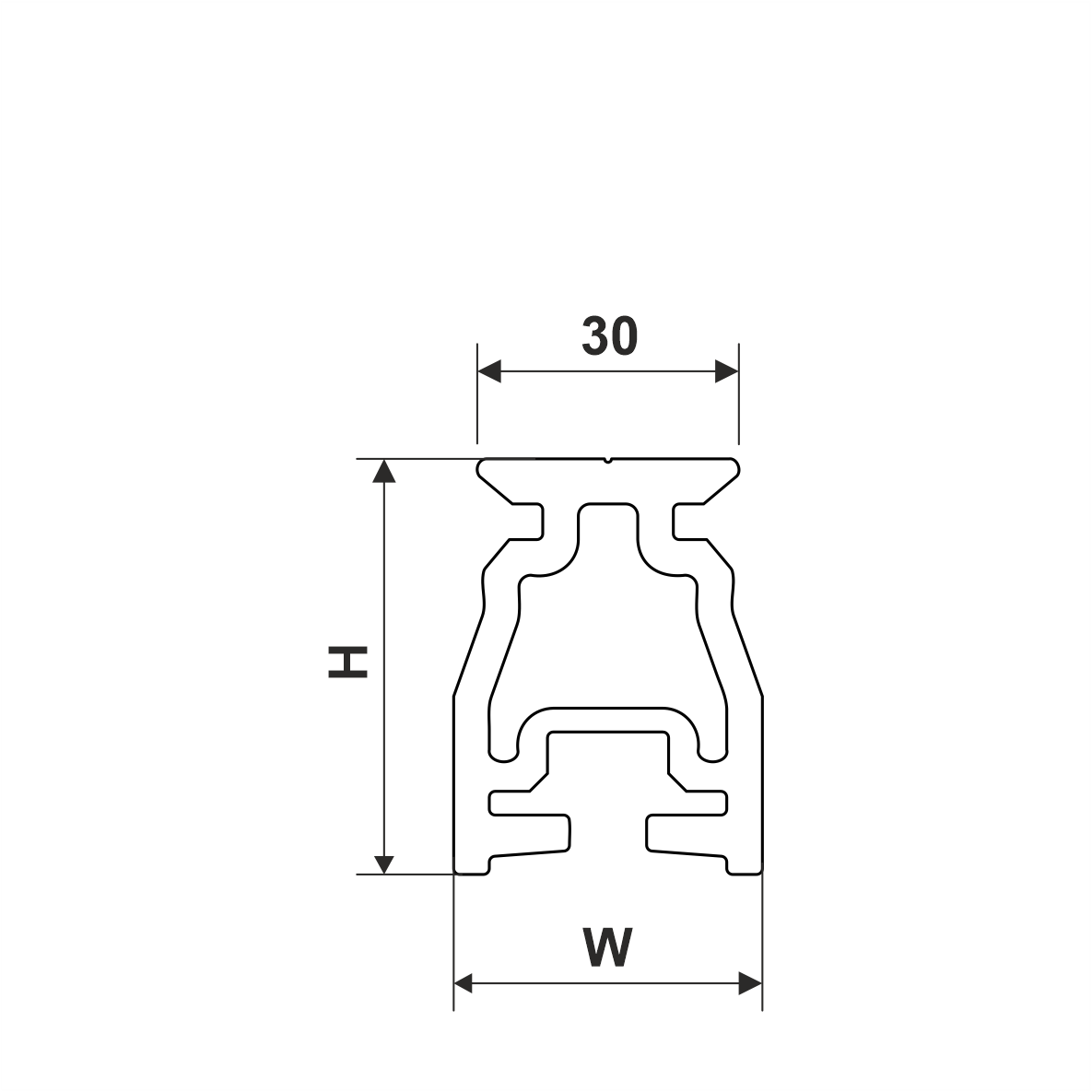

A High-Beam track is a black anodized aluminium track normally used for unsupported main sheet arrangements. That means, they are only fixed at the ends. The System 30 High-Beam track is 62 mm high, 42 mm wide at the base and the track is 30 mm. Combine with System 30 Standard or Performance main sheet cars 443-181-01, 443-182-01, 443-185-01, 443-185-02, 443-351-01, 443-351-02, 443-351-03, 443-351-04, 443-351-05 or 443-355-01.

A sliding bolt function at the base facilitates assembly. Use M8 bolts and sealing washers 164-483.

System: 30
Profile: Highbeam
Length: 2000 mm
W: 42 mm
H: 62 mm
Fasteners: Sealing washer 164-483 + M8 bolt
Comment: For max unsupported length use main sheet calculator
