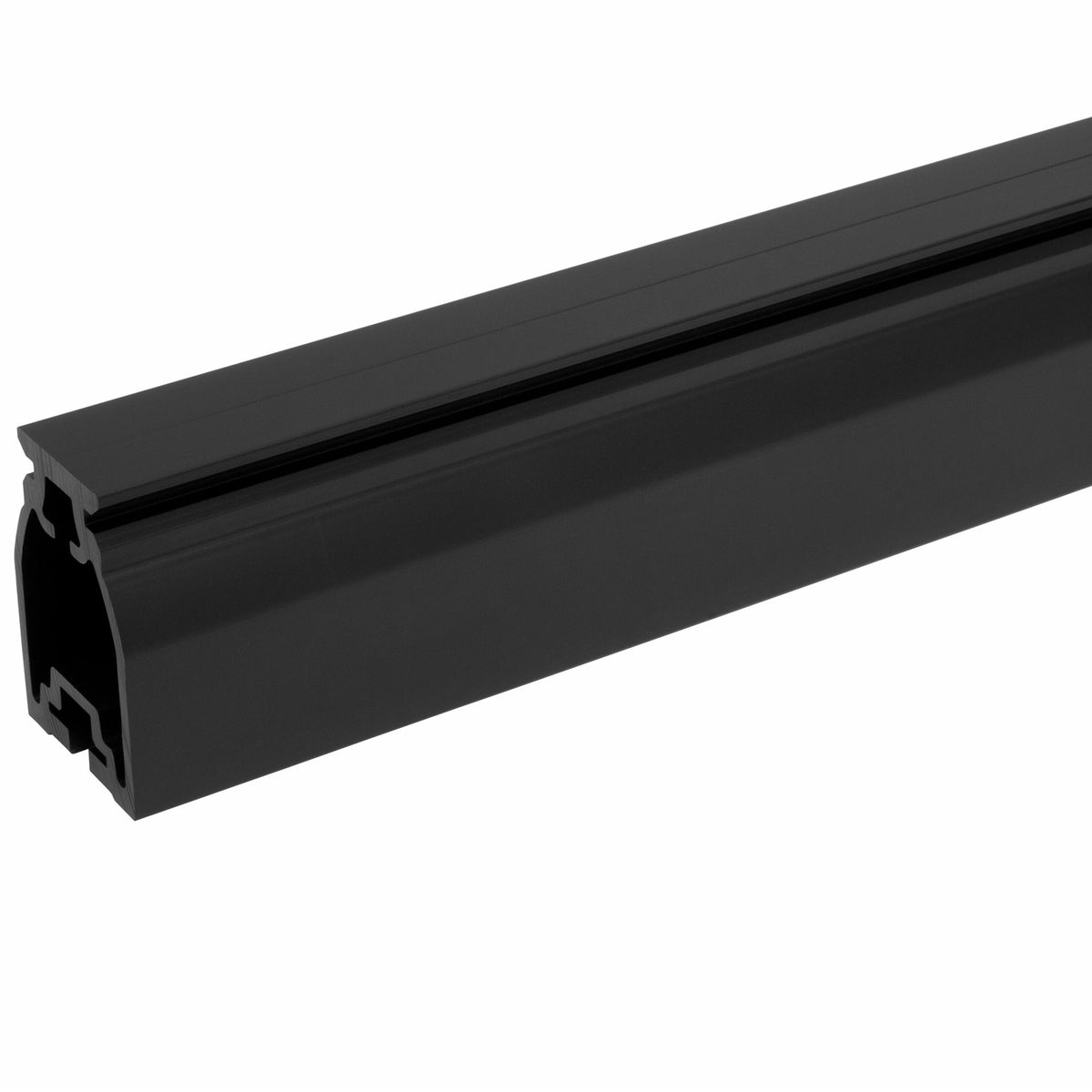

System 30 - High-Beam Self-Tacking Track, 1800 mm, Radius R6500

System 30 Self-tacking track. Length 1800 mm, Radius R6500. suitable for J-measurements 3700 - 4700 mm and the sheet lead up the mast to a sheavebox.

The System 30 High-Beam Self-Tacking Track is designed for yachts up to 10 ton displacement.

A self-tacking jib makes life on board a lot easier, in particular for short handed crews. The jib sheet is led to a car which moves to leeward during the tack with no need to touch the sheet. Tacking is as simple as steering the boat through the wind.
For retro-fit installations on boats ranging from 25’ to 45’, high beam tracks with a standard radius and standard length can be ordered from stock. The side consoles, deck fittings and a car are added to complete the system. A ball-joint allows for perfect
alignment of the track to a 90° angle to the direction of load and for an easy installation to the deck or coach side.

J-min: 3400 mm
J-max: 4700 mm
Radius: 6500 mm
Length: 1800 mm
Application: ST,MSS
