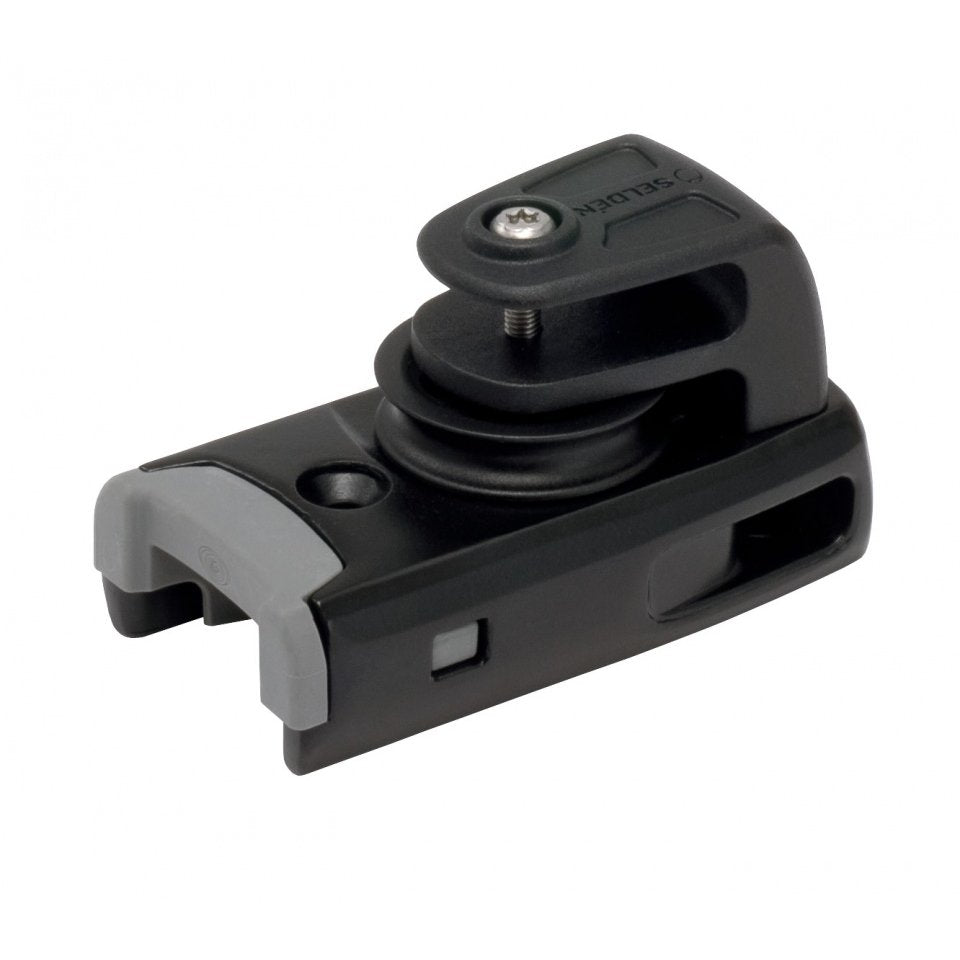

System 30 - End Control, Single Plain Bearing Sheave, Becket for Control Line

The Genoa End Control with Single sheave is part of the System 30 deck hardware range. It features a ø40 mm plain bearing sheaves for 3:1 purchase of the control lines. The hole in the base is a "dead-end" becket for a control line. The fitting is anodized aluminium with a shock absorbing rubber buffer.

Ideal dimension of the control line is ø7 mm. See Seldén's line packages.

Control lines, article numbers and descriptions

400-500-09 CONTROL LINE, BLACK L=9000

400-500-12 CONTROL LINE, BLACK L=12000

400-500-15 CONTROL LINE, BLACK L=15000

400-500-18 CONTROL LINE, BLACK L=18000

System: 30
SWL: 300 kg
Breaking load: 600 kg
Purchase: 4 N:1
Max control line Ø: 8 mm
Length: 107 mm
Width: 52 mm
Fasteners: 1x MFT M6
