System 30 - Genua Car, Slide Rods, Single Plain Bearing Sheave, Becket for Control Line

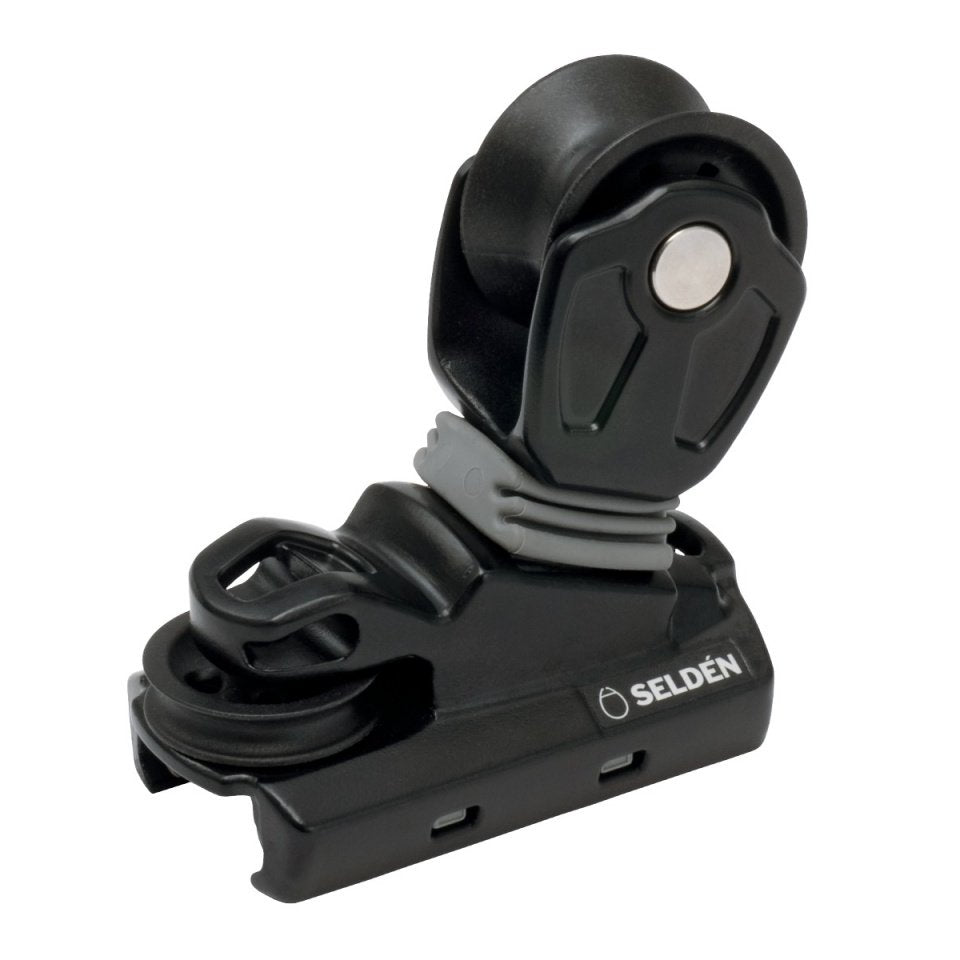

The Genoa Sheet Car 30 is laquered aluminium with slide rods and a ø50 mm V-shaped Acetal sheave supported by a rubber stand up. It features a ø40 mm plain bearing sheave for 3:1 purchase of the control line. Ideal dimension of the control line is ø7 mm. See Seldén's line packages.

Control lines, article numbers and descriptions

400-500-09 CONTROL LINE, BLACK L=9000

400-500-12 CONTROL LINE, BLACK L=12000

400-500-15 CONTROL LINE, BLACK L=15000

400-500-18 CONTROL LINE, BLACK L=18000

System: 30
SubType: slidingRod
Safe working Load: 700 kg
Breaking Load: 1400 kg
Max control line Ø: 8 mm
Pinstop: 0
Purchase: 3 (N:1)
Length: 107 mm
Width: 60 mm
