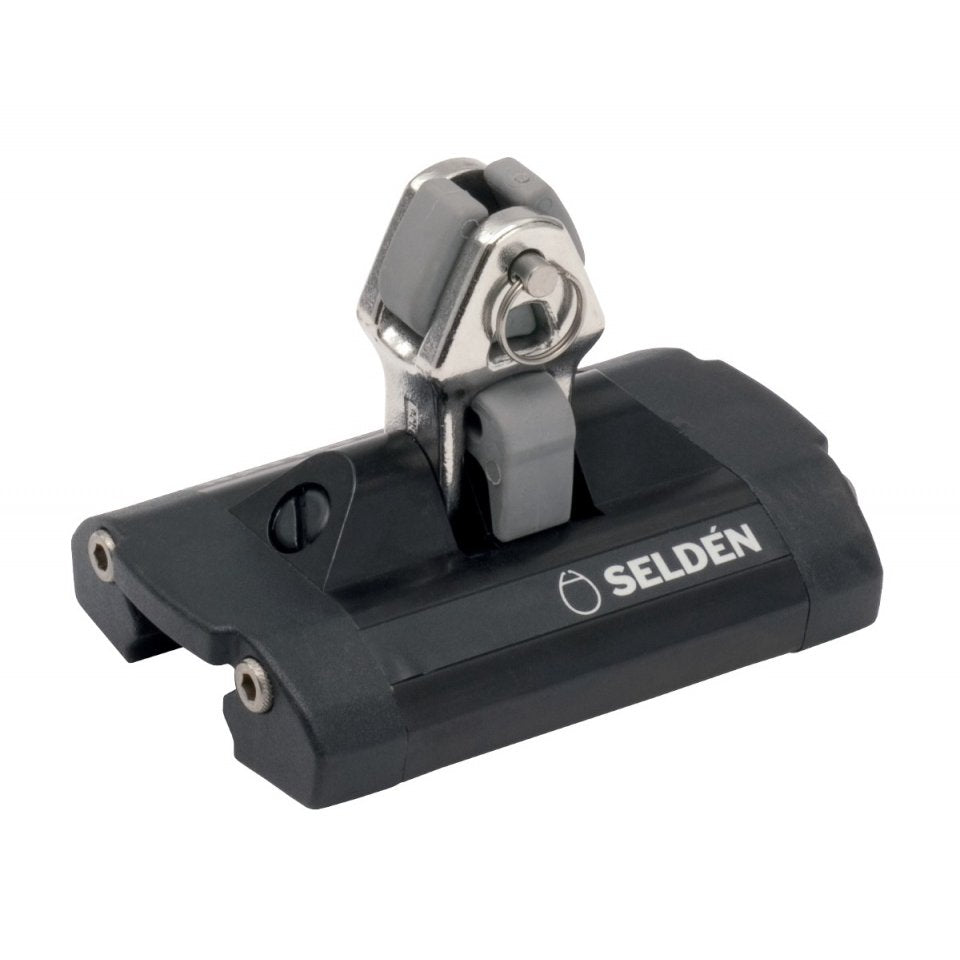

System 30 - Single Ball Bearing Self-Tacking Car for High-Beam Track, Stainless Toggle with Stand-Up

The System 30 Self-Tacking Car is designed for Seldén 30 mm Self-tacking system. It features Torlon ball bearings and stainless toggle for smooth operation. The toggle accepts PBB60, PBB70 and RBB60 blocks.

Recommended for boats with a righting moment < 60 kNm at 30° heeling angle which corresponds to approximately 10 ton displacement.

System: 30
SubType: toggle
Safe working Load: 1100 kg
Breaking Load: 2200 kg
Length: 117
Width: 78
Min Rv: 3000
Min Rh: 3000
