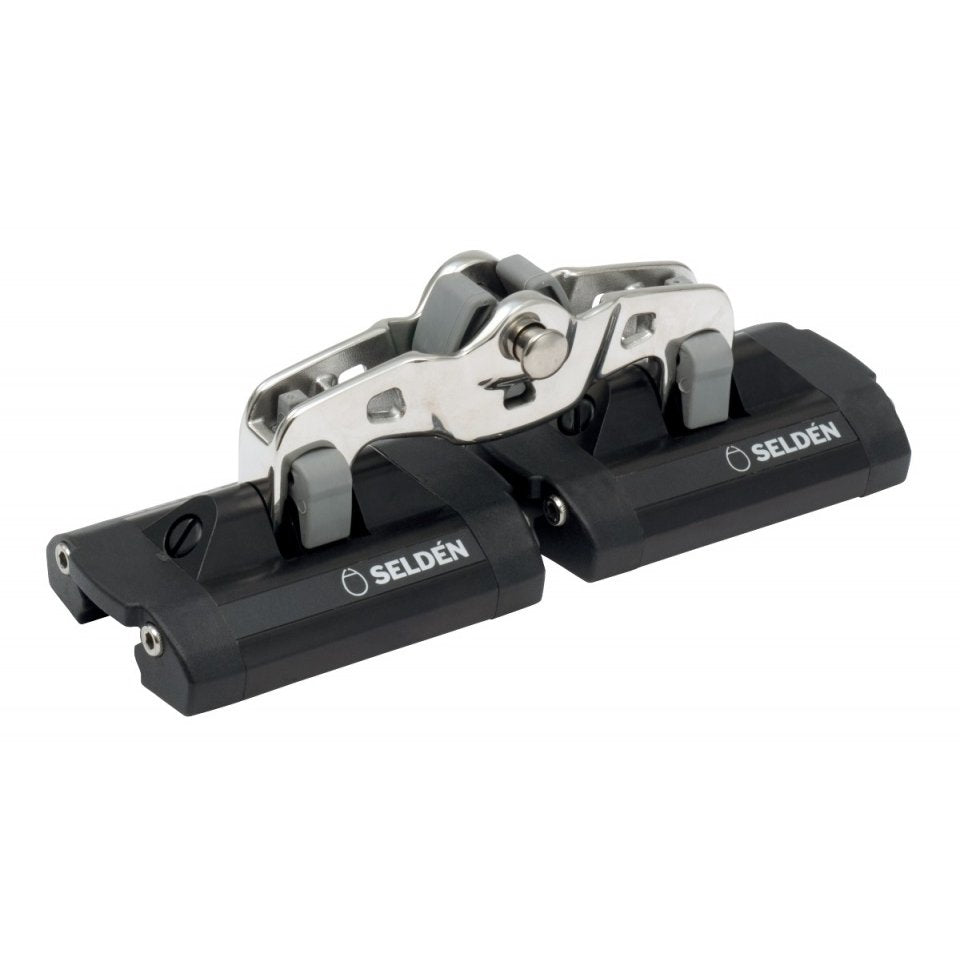

System 30 - Double Ball Bearing Self-Tacking Car for High-Beam Track, Stainless Toggle Link with Stand-Ups

The System 30 Self-Tacking Double Car is designed for Seldén 30 mm Self-tacking system. It features Torlon ball bearings and stainless toggle for smooth operation. The toggle accepts PBB60, PBB70 and RBB60 blocks.

Recommended for boats with a righting moment > 60 kNm at 30° heeling angle which corresponds to approximately 10 ton displacement.

System: 30
SubType: toggle
Safe working Load: 2000 kg
Breaking Load: 4000 kg
Length: 237
Width: 78
Min Rv: 3000
Min Rh: 3000
