System 30 - Genoa Ball Bearing Car, Double Plain Bearing Sheaves

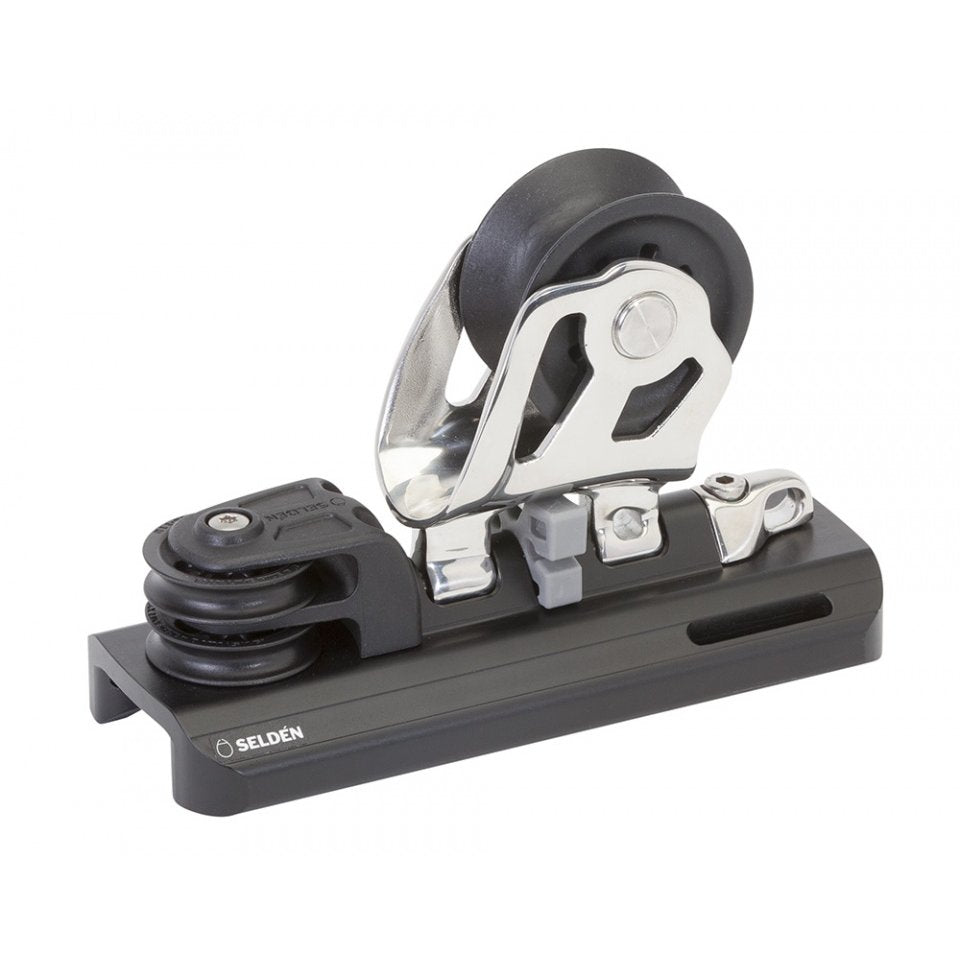

The Genoa Sheet Car 30 is anodized aluminium with Torlon Ball Bearings and a ø50 mm V-shaped Acetal sheave in a stainless sheave holder supported by a rubber stand up. It features ø40 mm plain bearing sheaves for 4:1 purchase of the control line. Ideal dimension of the control line is ø7 mm. See Seldén's line packages.

Control lines, article numbers and descriptions

400-500-09 CONTROL LINE, BLACK L=9000

400-500-12 CONTROL LINE, BLACK L=12000

400-500-15 CONTROL LINE, BLACK L=15000

400-500-18 CONTROL LINE, BLACK L=18000

System: 30
Safe working Load: 1200 kg
Breaking Load: 2400 kg
Max control line Ø: 7 mm
Pinstop: 0
Purchase: 4 (N:1)
Length: 180 mm
Width: 75 mm
Min Rv: 5000 mm
Min Rh: 5000 mm
