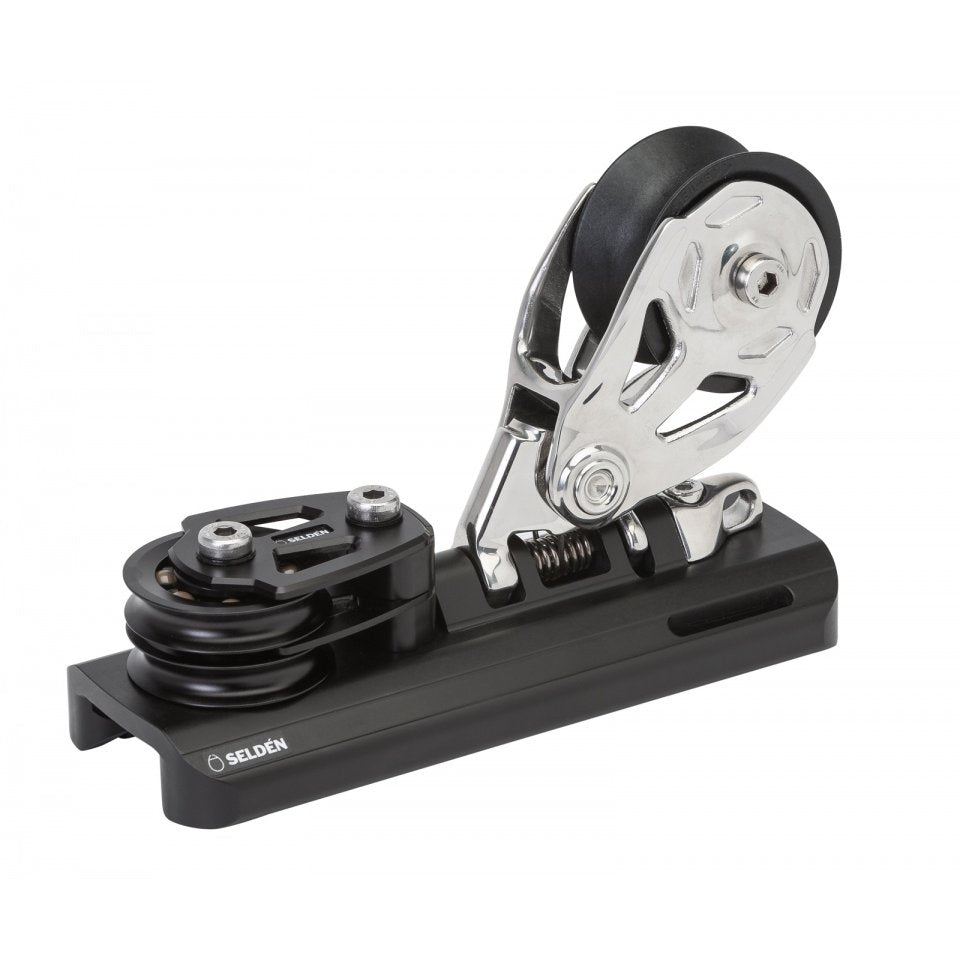

System 30 - Genoa Ball Bearing Car, Ball Bearing sheaves, 4:1 Purchase

The System 30 Performance Double sheave Genoa Car is designed for high performance jib/genoa trim with 4:1 purchase. The car is anodized aluminium with Torlon Ball Bearings and a ø60 mm V-shaped Acetal sheave in a stainless sheave holder supported by a stainless spring stand up.

For the control line, the car features two ø50 mm machined aluminium sheaves with Torlon ball bearings separated from each other in ball cages. This prevents ball-to-ball contact and makes for low friction.

System: 30p
Safe working Load: 1500 kg
Breaking Load: 3000 kg
Pinstop: 0
Purchase: 4 (N:1)
Length: 190 mm
Width: 75 mm
Min Rv: 5500 mm
Min Rh: 5500 mm
