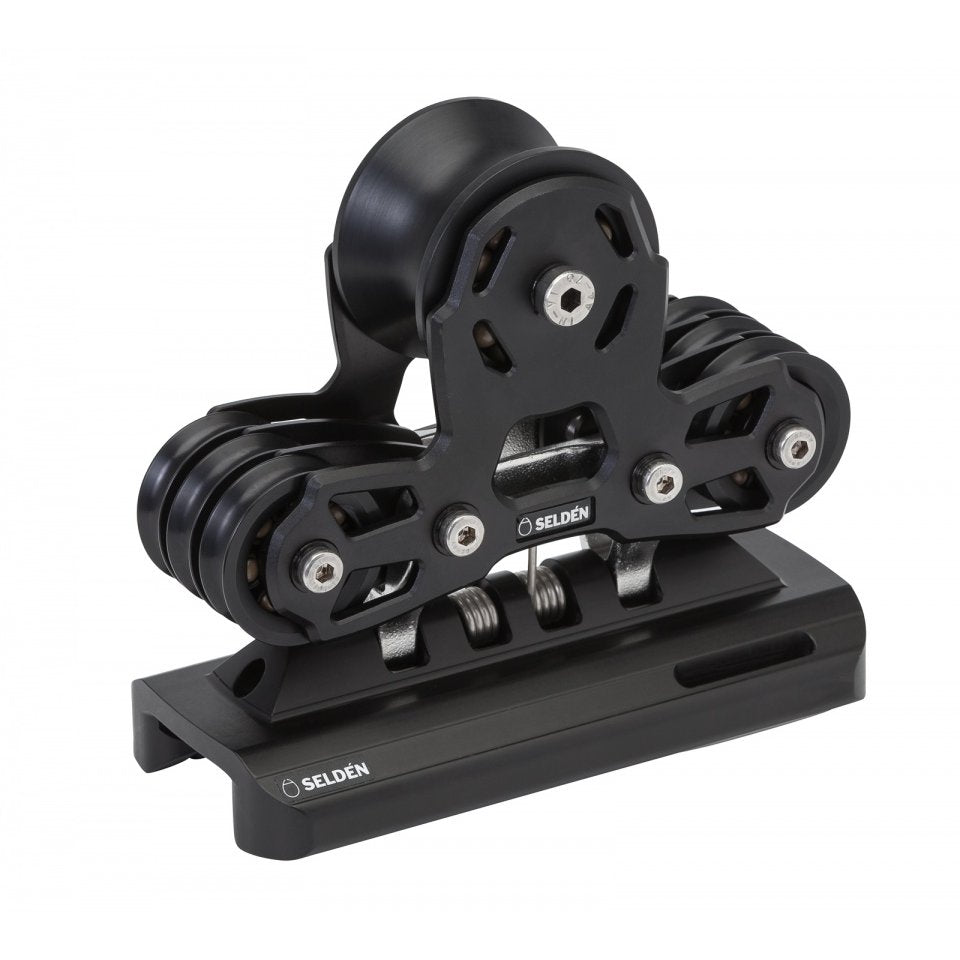

System 30 - Main Ball Bearing Car, Ball Bearing Sheaves, 6:1 Purchase, German Sheeting

System 30 Performance Ball Bearing Car for German sheeting. Main sheet car in anodized aluminium for German sheeting and a 6:1 control line system. The sheave house is articulating and stabilized by two stainless springs and the sheet sheave is a V-shaped ø60 mm machined aluminium wheel on Torlon ball bearings.

The sheaves for the control line are machined ø40 mm aluminium with Torlon ball bearings separated from each other in ball cages. This prevents ball-to-ball contact and makes for low friction.

System: 30p
Safe working Load: 1500 kg
Breaking Load: 3000 kg
Purchase: 6
Length: 160 mm
Width: 75 mm
Min Rv: 5000 mm
Min Rh: 5000 mm
