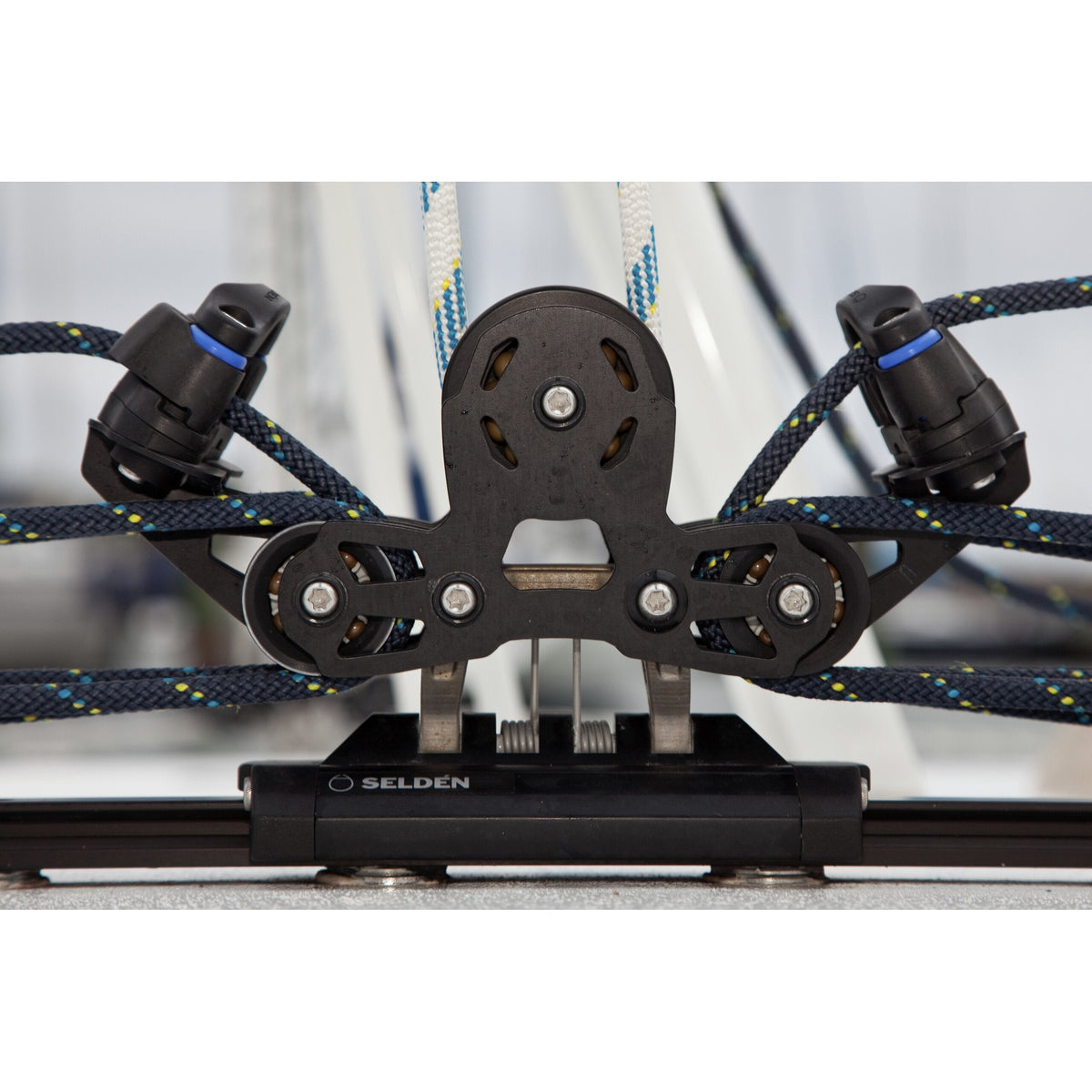

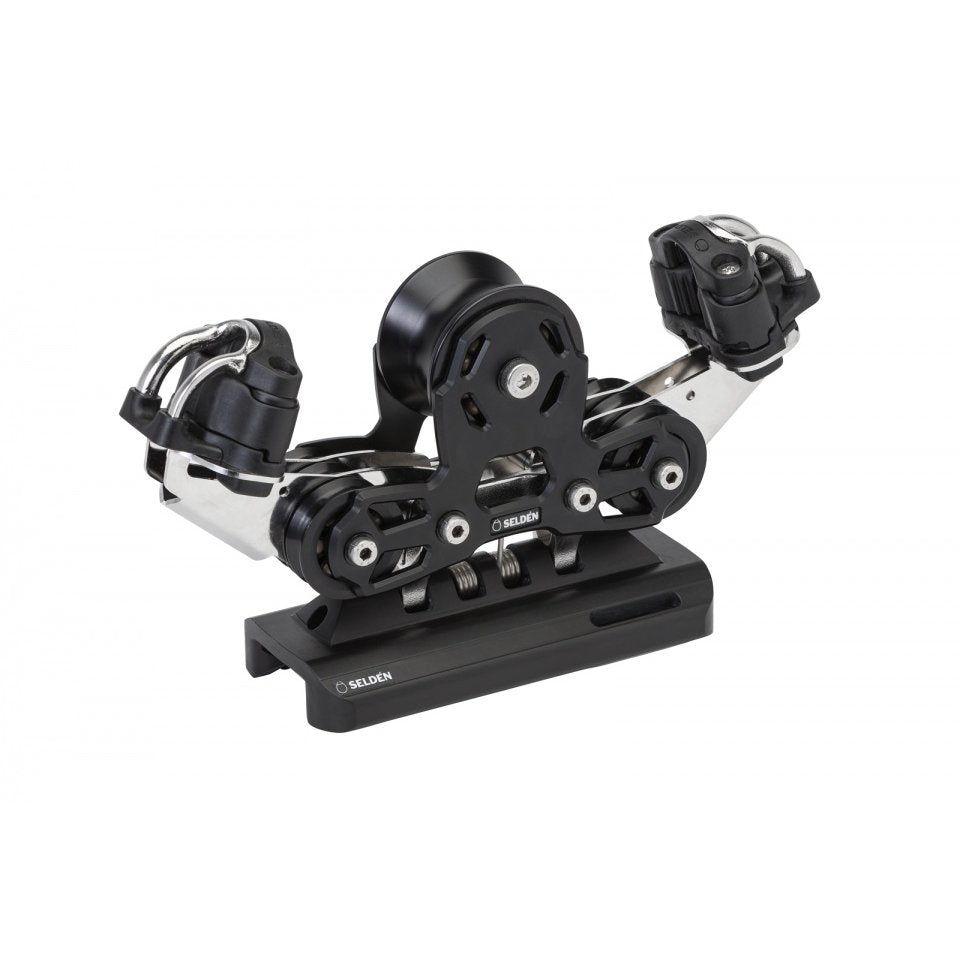

System 30 - Main Ball Bearing Car, Ball Bearing Sheaves, 6:1 Purchase, German Sheeting, Control Arms with Cam Cleat 38

System 30 Performance Ball Bearing Car for German sheeting and Cam Cleat control. Main sheet car in anodized aluminium and a 6:1 control line system. The sheave house is articulating and stabilized by two stainless springs and the sheet sheave is a V-shaped ø60 mm machined aluminium wheel on Torlon ball bearings

The arms are stainless and carries 38 mm composite Cam Cleats and three control sheaves each side.

The sheaves for the control line are ø40 mm machined aluminium with Torlon ball bearings, separated from each other in ball cages. This prevents ball-to-ball contact and makes for low friction.

System: 30p
Safe working Load: 1500 kg
Breaking Load: 3000 kg
Purchase: 6
Length: 260 mm
Width: 75 mm
Min Rv: 5000 mm
Min Rh: 5000 mm
