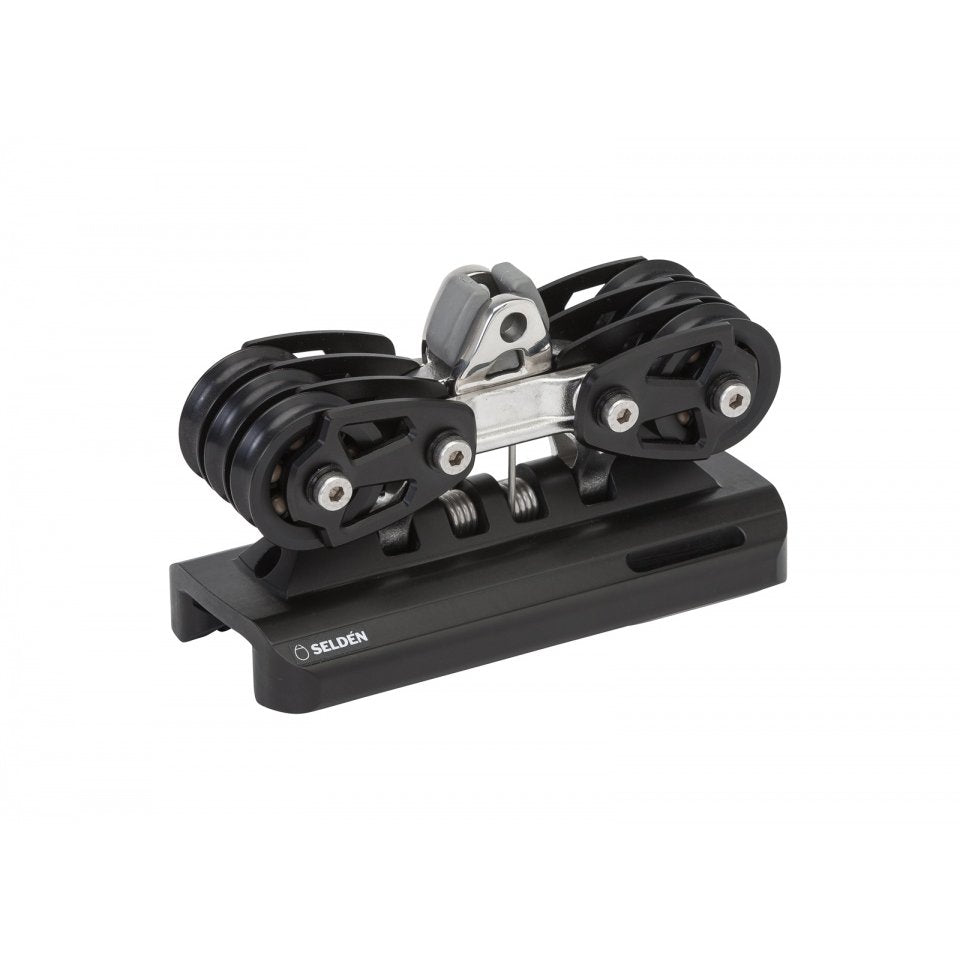

System 30 - Main Ball Bearing Car, Ball Bearing Sheaves, 6:1 Purchase, Stainless Toggle with Stand-Up

System 30 Performance Ball Bearing Car with Toggle. Main sheet car in anodized aluminium with stainless toggle for PBB70 or RBB60 block/tackle and a 6:1 control line system. The sheave house is articulating and stabilized by two stainless springs.

The sheaves for the control line are machined ø40 mm aluminium with Torlon ball bearings separated from each other in ball cages. This prevents ball-to-ball contact and makes for low friction.

System: 30p
Safe working Load: 1500 kg
Breaking Load: 3000 kg
Purchase: 6
Length: 160 mm
Width: 75 mm
Min Rv: 5000 mm
Min Rh: 5000 mm
