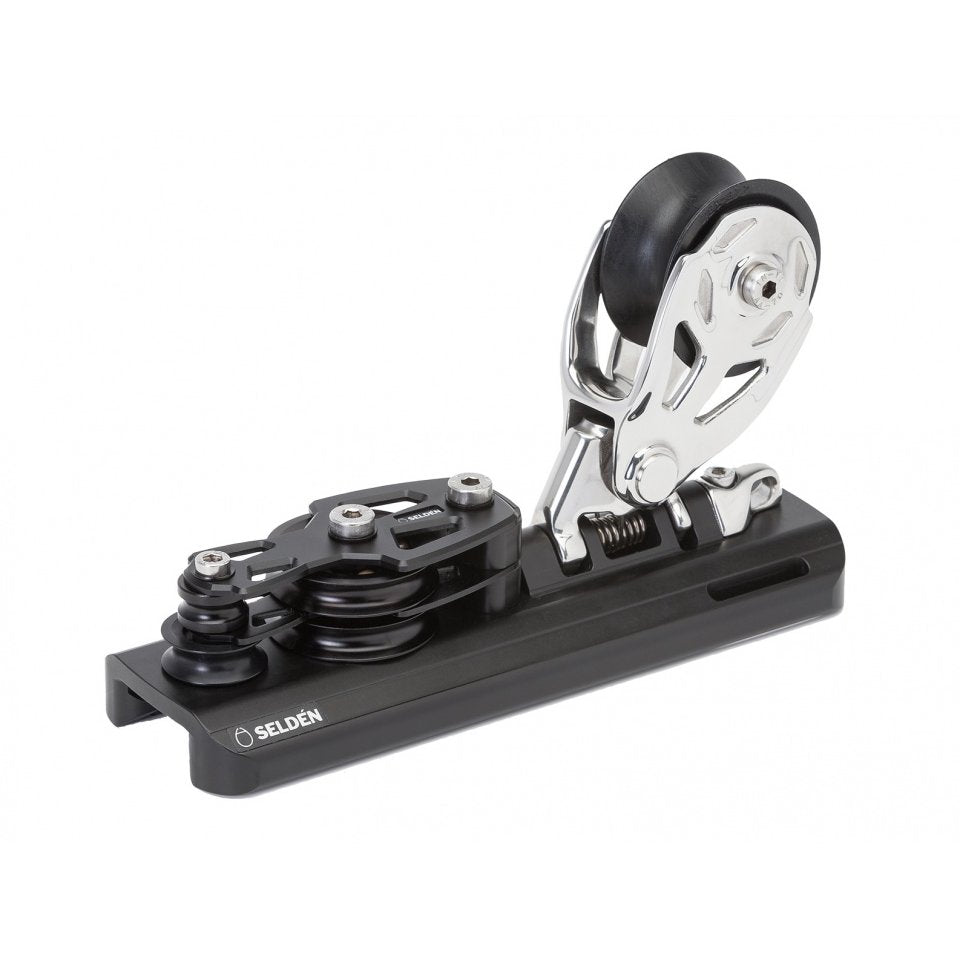

System 30 - Genoa Ball Bearing Car, Ball Bearing sheaves, 7:1 Purchase, Becket for Control Line

The System 30 Performance Fiddle/Becket Genoa Car is designed for high performance jib/genoa trim with 7:1 purchase. The car is anodized aluminium with Torlon Ball Bearings and a ø60 mm V-shaped Acetal sheave in a stainless sheave holder supported by a stainless spring stand up.

The upper control block has a "dead-end" becket for the control line.

For the control line, the car features two ø50 mm and one ø30 mm machined aluminium sheaves with Torlon ball bearings separated from each other in ball cages. This prevents ball-to-ball contact and makes for low friction.

System: 30p
SubType: Ballbearing
Safe working Load: 1500 kg
Breaking Load: 3000 kg
Pinstop: 0
Purchase: 7 (N:1)
Length: 225 mm
Width: 75 mm
Min Rv: 6500 mm
Min Rh: 6500 mm
