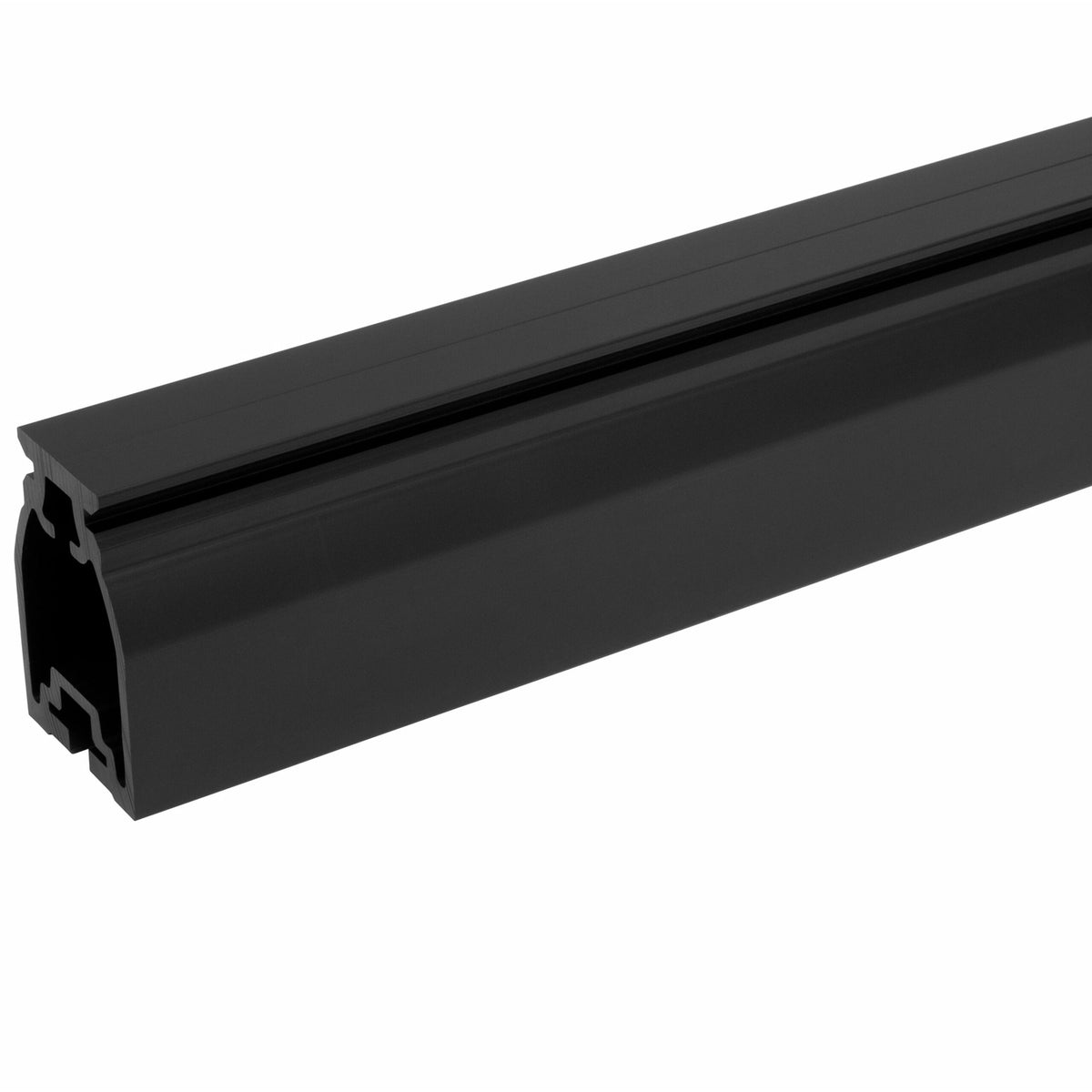

System 42 - High-Beam Track, 2000 mm

The System 42 High-Beam Track, 2000 mm, is designed for mainsheet applications on large yachts.

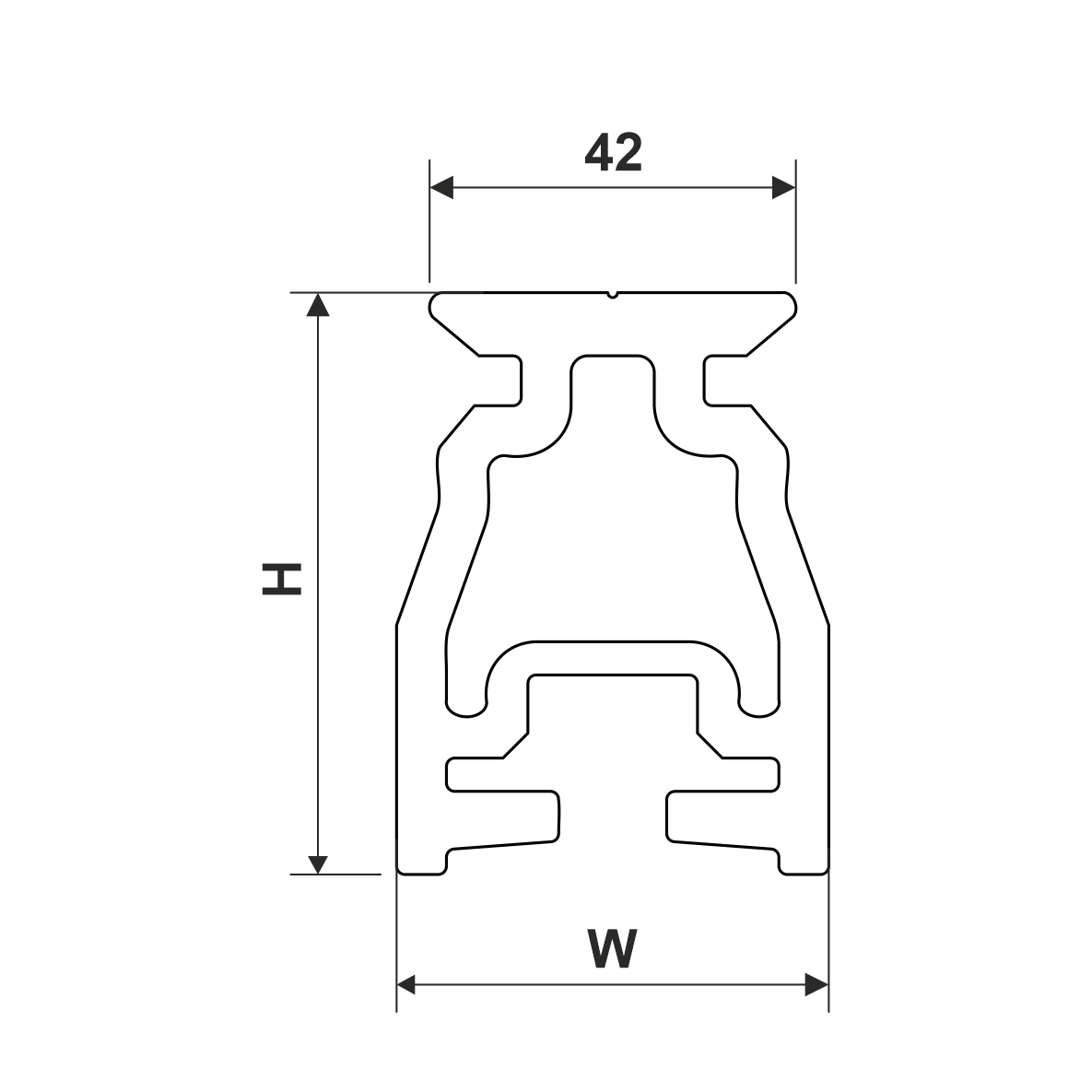

A High-Beam track is a black anodized aluminium track normally used for unsupported main sheet arrangements. That means, they are only fixed at the ends. The System 42 High-Beam track is 85 mm high, 58 mm wide at the base and the track is 42 mm. Combine with System 42 main sheet cars.

A sliding bolt function at the base facilitates assembly. Use M10 bolts and sealing washers 164-484.

System: 42
Profile: Highbeam
Length: 2000 mm
W: 58 mm
H: 85 mm
Fasteners: Sealing washer 164-484 + M10 bolt
Comment: For max unsupported length use main sheet calculator
