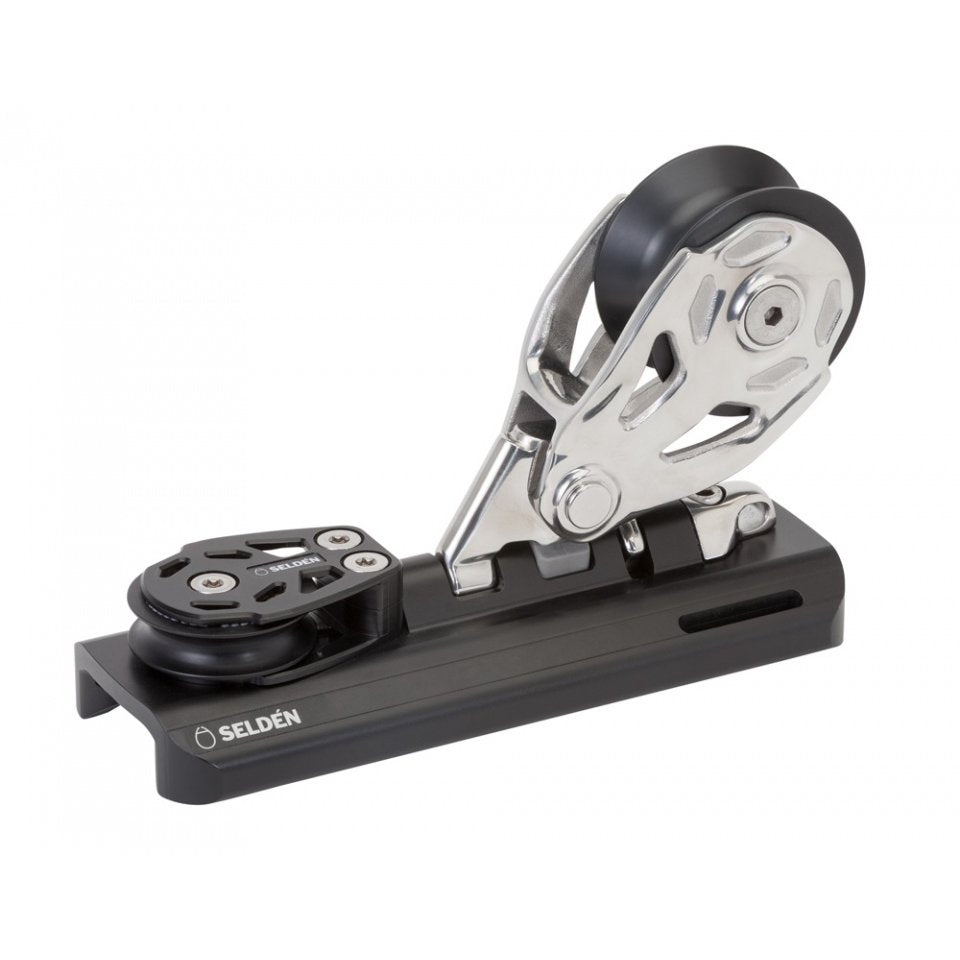

System 42 - Genoa Ball Bearing Car, Single Roller Bearing Sheave, 2:1 Purchase

The System 42 Genoa Car is designed for high performance jib/genoa trim with 2:1 purchase. The car is anodized aluminium, it runs on Torlon ball bearings and the sheet wheel is a ball bearing machined aluminium roller. It sits in a stainless holder supported by a stand-up rubber.

The control sheave is a RBB60 cheek block with Torlon ball bearings separated from each other in a ball cage. This prevents ball-to-ball contact and makes for a low friction operation.

System: 42
Safe working Load: 2750 kg
Breaking Load: 5500 kg
Purchase: 2
Length: 250 mm
Width: 96 mm
Min Rv: 12000 mm
Min Rh: 12000 mm
