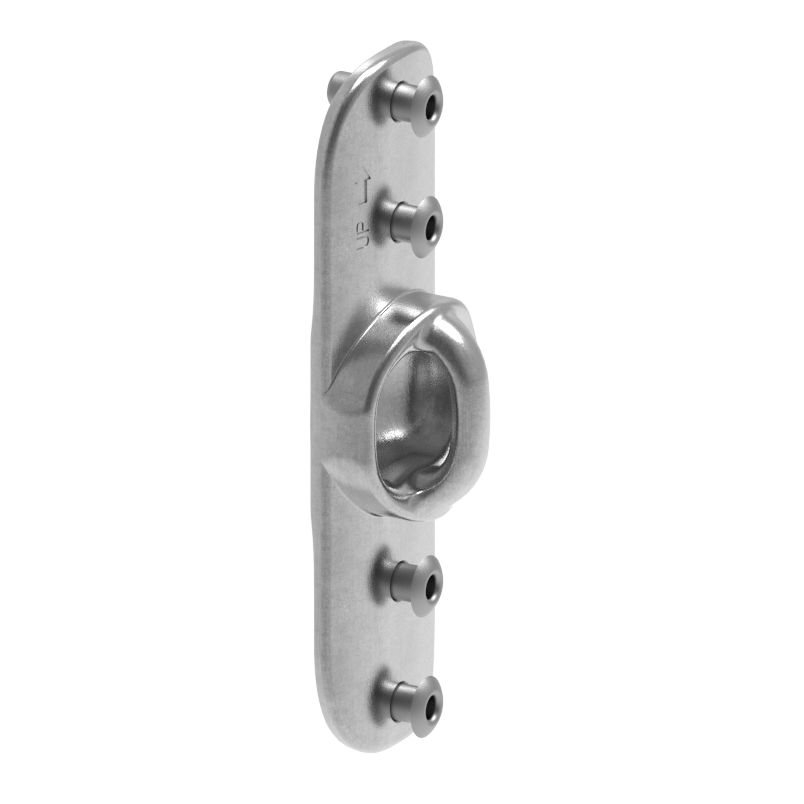

Dead-end bracket for Code Zero halyard, Max rope ø14

Dead-end fitting for a Code Zero halyard.

Code Zero halyard with 2:1 purchase
To boost the performance when using a Code Zero, the halyard load must be higher than what normal halyard boxes and stoppers can handle. Therefore, a 2:1 purchase needs to be arranged by fixing the dead end of the halyard in the mast and letting it run through a block attached to the halyard swivel. Position on the mast must be specified by Seldén. In most cases Code Zero sails need to be hoisted lower than gennakers and spinnakers.

Fits Seldén mast sections E206, C225, C242, C245, C261, C264, C285, F246, F252, F265, F272, F286, F291, F305

4 x Monel pop-rivets ø6,4 x 17,8 mm included.

Max righting moment (RM) at 30° heel: 180 kNm.

Mast Section: C225,C245,C242,C264,C261,C285,F234,F246,F252,F265,F272,F286,F291,F305
SWL (1): 2200 kg
